316 Stainless Steel Pem Nut & Clinch Nut manufacturer in India

What are self clinching nuts?

As a Self clinching nuts manufacturer we produce the self-clinching nuts in different dimensions and material grade. A self-clinching or swage nut locks itself into the soft panel of the application. The nut is Then used to insert threaded rods, bolts and screws. Rolex Metal Distributors is a leading producer of the Stainless Steel Clinching Nut in different types.

Stainless steel self clinching nuts applications

The material is usually hard stainless steel. The nuts are then used to fit onto softer surfaces like aluminum panels. There are three parts to the stainless steel clinch nuts. A main shaft, an undercut and a clinching ring with serration and larger diameter. This structure allows the nuts to fit into place and lock themselves into the structure while allowing the bolts and screws to fit into them. The stainless steel self clinching nuts are made in different materials such as 304, 316 and other grades of stainless steels. The sizes of the nuts vary depending on the metallic sheets that they are attached to. The m3 self clinching nut is ideally used in aluminum panels and wooden applications. The sizes can range from M3 to M12 in different applications. There are minimum sheet thicknesses for each nut size.

Special features of self locking clinch nuts

The 18-8 Stainless Steel hex self clinch nut is one of the most used because of the cost effectiveness of the nut, corrosion resistance, strength and hardness. The hex nuts are used for ease of access with tools. The self locking clinch nuts are beneficial on soft material surfaces as bolts and screws can damage the soft surfaces if driven directly onto them. These nuts act as a strong holding material points at the same time they do not turn after installation while driving the bolts or screws due to the serration that locks the self clinch blind nut in place. As a leading supplier, we supply these nuts in all dimensions, sizes and different material grades. Please feel free to contact us for more information on the different types of SS swage nuts and the prices.

Check dimensions, sizes and weight chart of Stainless Steel 304 Hex Self Clinch Nut

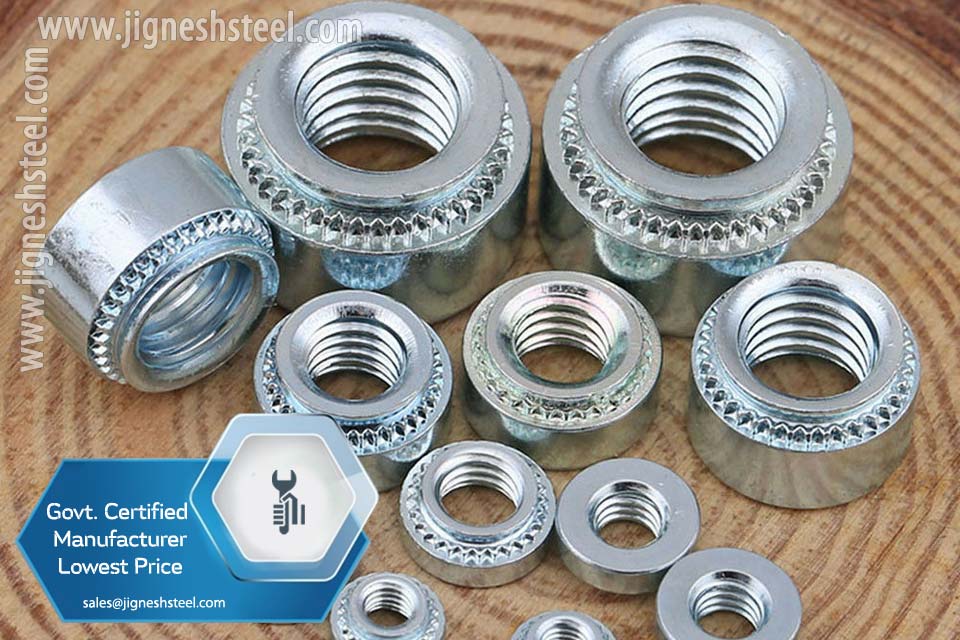

Stainless Steel Self Clinching Nuts

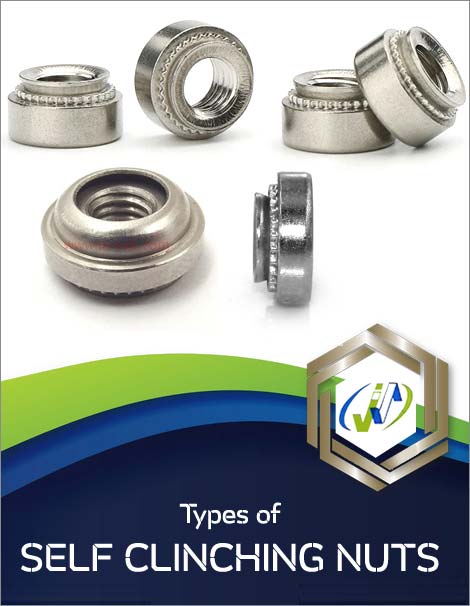

Types of Self Clinching Nuts

Table of contents

Stainless Steel Self Clinching Nuts Price List India

18-8 Stainless Steel Self Clinch Blind Nut & SS Swage Nuts For Sheet Metal

SS 304 Self Clinch Nut, SIZE M6-1 INR 580/Kg

Call us or send us an email to marketing@rolexmetals.com for more details.

Stainless Steel Self Clinching Nuts Specifications

SS Self Clinching Screw & Pem Self Clinching Nuts Fasteners For Aluminum

ANSI - Stainless Steel Self Clinching Nuts American Standard ANSI B18.16.1M (metric)
DIN - Stainless Steel Self Clinching Nuts German Standard DIN 931
ISO Standard ASTM A453 Grade 660 Self Clinching Nuts ISO 4032
Suitable material
  • Carbon Steel Pem Nut suitable for Steel/ Aluminium Sheets HRB 80/ HB 150 or less
  • Stainless Steel Pem nuts used for Steel/ Aluminium Sheets HRB 70/ HB 125 or less
  • Hardened Stainless Steel Swage Nuts mainly used for Stainless Steel Sheets HRB 90/ HB 192 or less
  • Clinching Nut are well suited for Steel/ Aluminium Sheets HRB 50/ HB 82 or less
SAE Specification
  • Self Clinching Nuts : SAE J995
316 Stainless Steel Self Clinching Nuts Size Metric
  • Dia: M10 - M110
  • Length: 12 - 1200MM
Stainless Steel 304 Self Clinching Nuts Size Inch
  • Dia: 1/2" - 4.0"
  • Length: 1/2" - 52"
Stainless Steel Self Clinching Nuts International Specification IS, ANSI, ASTM, DIN, ISO, JIS, GB, ASME, BS, UNI, CSN, EU, IFI, PN,
Self Clinching Nuts Standard
  • American ASME
  • Indian IS
  • International ISO
  • American SAE
  • German DIN
  • Spanish CSN
  • British BS
  • Italian UNI
  • Polish PN
  • European EU
ASTM A193 Grade B8 Self Clinching Nuts Standard Sizes M10, M4, M16, M36 M2.5, M6, M30, M12, M8, M14, M2, M3, M20, M24, M5 to M160
SA 193 Gr B8m Self Clinching Nuts Threads Unified national coarse (UNC), Unified national fine (UNF), Unified national extra fine (UNEF), UNJC and UNJF threads, UNK threads, UNR threads, Constant-pitch threads
12.9 Grade Self Clinching Nuts Head Drive Phillips, Slotted, Phillips/Slot, Six-Lobe
MTC (Manufacturer Test Certificate) EN 10204 / 3.1
A193 Grade B7m Self Clinching Nuts Production Process
  • M2-M24: Cold Forging, Hot forging
  • M24-M100, machining and CNC for Customized connecting element
A193 Grade B7m Self Clinching Nuts Packing
  • Wooden Pallet, Canton, Carton / Small Box or as required
  • Carton size : 36* 24 *16 CM & 36 *24 *12 CM  or as required
  • Pallet size: Standard Euro Pallet 110* 80 *90 CM
Free Sample Yes if we have in stock
Payment Terms Paypal, Western Union, T/T (Telegraphic Transfer or Wire Transfer), L/C or Trade Assurance 30% deposit & balance before shipping
Preferred Self Clinching Nuts Drawing Formats JPEG, PDF, CAD, STP, IGS
Manufacturing Process
  • Heading
  • Machining
  • Threading
  • Heat treatment
  • Plating
  • Baking
  • QA
  • Package
  • Shipping
Delivery Time 7-15 working days as usual, It will based on the detailed order quantity.
Port of Dispatch Mumbai or Kalamboli ports in Maharashtra state of India
Self Clinching Nuts Plating Specifications
  • ASTM A153 Zinc coating (hot dip)
  • ASTM B695 zinc coating
  • ASTM F1941 Electrodeposited coatings (Zinc plating).
  • ASTM F2329 Zinc coating, hot dip
Types of Self Clinching Nuts

Don't forget to compare our price with other Clinch Nut manufacturers, we offer great deals on M3 M4 M5 M6 M8 Metric self clinching nut in India

Stainless Steel Self Clinching Nuts

Stainless Steel Self Clinching Nuts

316 Stainless Steel Hex Self Clinch Nut

316 Stainless Steel Hex Self Clinch Nut

Stainless Steel 304 Self Clinch Blind Nut

Stainless Steel 304 Self Clinch Blind Nut

AISI 410 Stainless Steel Swage Nuts

AISI 410 Stainless Steel Swage Nuts

A193 Grade B8 Class 2 Pem Self Clinching Nuts

A193 Grade B8 Class 2 Pem Self Clinching Nuts

SS 316 A4-80 Pem Nut

SS 316 A4-80 Pem Nut

Self Clinching Nuts Material and Grades
Carbon Steel Self Clinching Nuts AISI 1018, AISI 1045, AISI 1117, AISI 12L14, AISI 1215, ASTM A36 Self Clinching Nuts, ASTM A29, A108, A549, SAE J429, ASTM A307 Grade A/ B/ C
High Tensile Self Clinching Nuts Grade 4.8, grade 8.8, grade 10.9, grade 12.9, grade 4.6, Grade 5.8, Grade 9.8 Self Clinching Nuts
Stainless Steel Self Clinching Nuts SS 201, SS 303, SS 304, SS 304L, SS 316, SS 316L, 316H, SS 317L, SS 321, SS 304H, SS 310, SS 410, 347, SS 420 Self Clinching Nuts, 904L, 18-8 Stainless Steel, Black Stainless Steel, A2 -70, A2 -80, A4 -70, A4 -80 Self Clinching Nuts, A193 B8C (347), A193 B8T (321), A193 B6 (410)
Martensitic Stainless Steel Self Clinching Nuts 15-5 PH (UNS S15500), 17-4 PH (UNS S17400), 17-7 PH (UNS S17700)
ASTM A193 Self Clinching Nuts ASTM A193 B6, B7, B7m, B8T, SA 193 B8, B8 Class 1/ Class 2, B8M Class 2, A193 B16, SA 193 Grade B6X Self Clinching Nuts
ASTM A449 Self Clinching Nuts ASTM A449 Type 1 (Plain carbon steel, alloy steel, carbon boron steel, alloy boron steel)
ASTM A194 Self Clinching Nuts ASTM A194 Grade 2H , 2HM, SA 194 Grade 3/ 4 / 6 / 7 / 7m/ 8/ 8m
ASTM F593 Self Clinching Nuts 303, 304, 304L, 305, 384, XM1, 18-9LW, 302HQ, 303Se, 316, 316L, 321, 347, 430, 430F, 410, 416, 416Se, 431, 630 (17-4) (Austenitic, Ferritic, Martensitic & Precipitation Hardening)
All ASTM Standard of Self Clinching Nuts ASTM A320, A325, A36, A320 L7 Self Clinching Nuts, L7m, A320 Grade B8, A320 B8m, A307, A540, A563, A354, A490, A593, F593C, F593D, F593G Self Clinching Nuts
ASTM F3125 Heavy hex structural bolts This includes A325, A325M, A490, A490M, F1852, and F2280 heavy hex structural bolts, A325 Type 1, Type 2, Type 3
Alloy Steel Self Clinching Nuts AISI 4140, AISI 4130, ASTM A193 B7/ B8 / B8M/ B8 Class 2/ B8M Class 2, ASTM A320 L7/ L43
Spring Steel Self Clinching Nuts C55S, C60S, C67S, C75S, C100S, 51CrV4, 80CrV2 Self Clinching Nuts
Brass Self Clinching Nuts 3602 / 2604 / H59 / H62, C36000 , C37700 ( HPb59), C38500( HPb58), C27200(CuZn37), C28000 (CuZn40), Copper (99% Cu)
Free Cutting Steel Self Clinching Nuts 1213, 12L14,1215
Aluminum Self Clinching Nuts Al6061, Al6063, 5052 /6061/ 6063 / 2017 / 7075
Titanium Self Clinching Nuts ASTM B348 / ASME SB348, Titanium Gr. 1, Titanium Gr. 2, Titanium Gr. 4, Titanium Gr. 5, Titanium Gr. 7 Self Clinching Nuts
UNS  R50250/GR.1 | R50400/GR.2 | R50550/GR.3 | R50700/GR.4 | GR.6 |R52400/GR.7 | R53400/GR.12 | R56320/GR.9 |R56400/GR.5
Copper Self Clinching Nuts T1, T2, C10100, C10200, C10300, C10400, C10500, C10700, C10800, C10910,C10920, TP1, TP2, C10930, C11000, C11300, C11400, C11500, C11600, C12000,C12200, C12300, TU1, TU2, C12500, C14200, C14420, C14500, C14510, C14520, C14530, C17200, C19200, C21000, C23000, C26000, C27000, C27400, C28000, C33000, C33200, C37000, C44300, C44400, C44500, C60800, C63020, C68700, C70400, C70600, C70620, C71000, C71500, C71520, C71640, etc
Copper Nickel Self Clinching Nuts ASTM / ASME SB 151, Copper Nickel 90/10 (C70600 ), Cupro Nickel 70/30 (C71500), UNS C71640
Inconel Self Clinching Nuts ASTM B166 / ASME SB 166, Inconel Alloy 600 (UNS No. N06600), 601, 625 (UNS No. N06625), 718, 783, 690, x750 Self Clinching Nuts
Hastelloy Self Clinching Nuts ASTM B564 / ASME SB564, Hastelloy C276 (UNS N10276), C22 (UNS N06022), C4, C2000, B2, B3, X Self Clinching Nuts
Incoloy Self Clinching Nuts ASTM B564 / ASME SB564, Incoloy 800, 800H, 800HT (UNS N08800), 825 (UNS N08825), 925 Self Clinching Nuts, ASTM A453 Grade 660, ASTM A638 grade 660 Type 1, ASTM A286 Grade 660
Monel Self Clinching Nuts ASTM B564 / ASME SB564, Monel 400 (UNS No. N04400), Monel 500 (UNS No. N05500)
Nickel Self Clinching Nuts ASTM B564 / ASME SB564, Nickel 200, Nickel 201, Nickel 205, Nickel 205LC
Alloy 20 Self Clinching Nuts ASTM B462 / ASME SB462, Carpenter® 20 Alloy, Alloy 20Cb-3
Duplex Steel Self Clinching Nuts Duplex 2205, UNS S31803 / S32205 A479 Gr F51 / F52 / F53 / F54 / F55 / F57 / F59 / F60 / F61 Self Clinching Nuts
Super Duplex Self Clinching Nuts Super Duplex 2507, UNS S32750 / S32760 A479 Gr F51 / F52 / F53 / F54 / F55 / F57 / F59 / F60 / F61 Self Clinching Nuts
254 Smo Self Clinching Nuts ASTM A479 / ASME SA479, SMO 254/6Mo, UNS S31254, DIN 1.4547
Nimonic Self Clinching Nuts Nimonic 75, Nimonic 80A, Nimonic 90
Phosphor bronze Self Clinching Nuts PB102 (CW451K / C51000), PB104 (CW453K / C52400), PB1 (CC481K / C91700), LG1 (CC490K / C84400), LG2 (CC491K / C83600), LB4 (CC494K / C93500), SAE 660 (CC497K / C93200)
Alumunum bronze Self Clinching Nuts CA104 (CW307G / BSB23 / DTD197A), DEF STAN 02-833 (NES 833  / DGS 1043), DEF STAN 02-834 (NES 834 / DGS 1044/ CW301G), C63000 (AMS4640 / CW307G), C63200 (ASTM B150), AB2 (CC333G)
Other Self Clinching Nuts material Tin bronze, Lead bronze, Stellite, Molybdenum, Tantalum, Zirconium, Austenitic Steel, Chromium Vanadium Steel, Super Austenitic Steel, Weathering Steel Self Clinching Nuts
316 Stainless Steel Self Clinching Nuts Coating and Surface Treatment
  • Xylon Coated
  • Phosphate Coated
  • Hot Dipped Galvanized
  • Teflon Coated
  • Zinc Coated
  • Cadmium Coated
  • Ptfe Coated (Teflon)
  • Black Oxide
  • Polish
  • Anodizing
  • Passivation
  • Hot-dip galvanizing
  • Rust preventive oil
  • Sand blasting
  • Black oxide coating
  • Heat-disposing
  • Zinc white, (yellow, black, blue), black oxide,
  • Dacroment, Geometry, plated zinc-nickel, anodizing, nickel plated,
  • Stainless steel Self Clinching Nuts: Passivated Self-Colour, Bright Zinc Plated (BZP),
  • Hot Dip Galvanised (HDG), Sherardized, DACROMET and Mechanically Applied coating
  • Electroplating (color, blue, white, black zinc, Ni, Cr, tin, copper, silver)
Stainless Steel 304 Self Clinching Nuts Dimensions

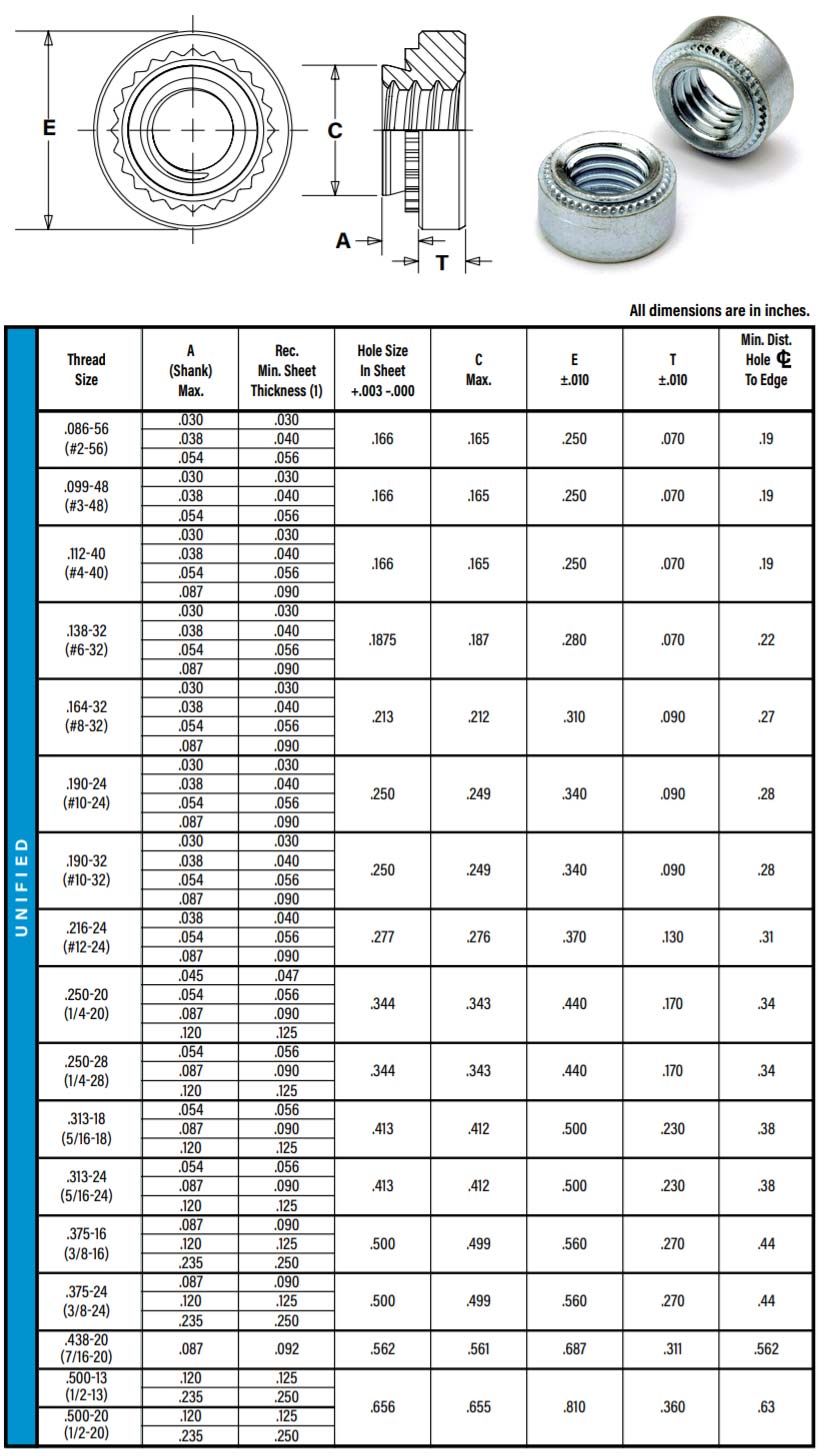

Self Clinching Nuts Dimensions

AISI 410 Stainless Steel Self Clinching Nuts Sizes

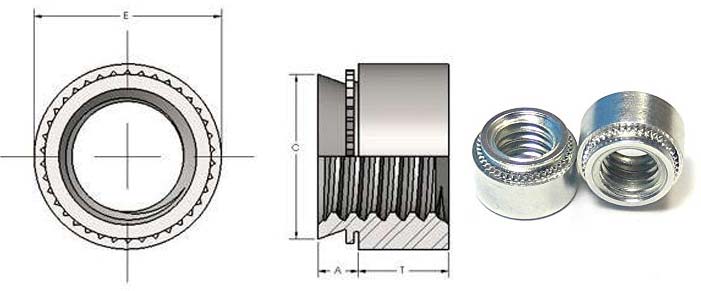

Self Clinching Nuts Sizes

THREAD SIZE

A
MAX.

MINIMUM SHEET THICKNESS

HOLE SIZE IN SHEET METAL

C

MAX.

E

MAX.

T 1

MAX.

MINDESTABST. HOLE C / L
TO EDGE

M2 x 0.40

0.76

0.97

1.37

0.80 - 1.00

1.00

1.40

4.25

4.22

6.30

1.50

4.80

M2.5 x 0.45

0.76

0.97

1.37

0.80 - 1.00

1.00

1.40

4.25

4.22

6.30

1.50

4.80

M3 x 0.5

0.76

0.97

1.37

0.80 - 1.00

1.00

1.40

4.25

4.22

6.30

1.50

4.80

M3.5 x 0.6

0.76

0.97

1.37

0.80 - 1.00

1.00

1.40

4.75

4.73

7.10

1.50

5.60

M4 x 0.7

0.76

0.97

1.37

0.80 - 1.00

1.00

1.40

5.40

5.38

7.90

2.00

6.90

M5 x 0.8

0.76

0.97

1.37

0.80 - 1.00

1.00

1.40

6.40

6.38

8.70

2.00

7.10

M6 x 1.0

1.37

2.21

1.40

2.30

8.75

8.72

11.05

4.08

8.60

M8 x 1.25

1.37

2.21

1.40

2.30

10.50

10.44

12.65

5.47

9.70

M10 x 1.5

2.21

3.05

2.31

3.18

14.00

13.97

17.35

7.48

13.50
Uses and application of A193 Grade B8 Class 2 Self Clinching Nuts
  • Oil & Gas Industries
  • Petroleum Industries
  • Nuclear Energy Sector
  • Chemical Industry
  • Aerospace Industry
  • Defence Industry
310 Stainless Steel Self Clinching Nuts Testing Equipment

Self Clinching Nuts Measuring Instruments and Equipment

  • Micrometer
  • Thread gauge
  • Smooth plug gauge
  • Roughness tester
  • Image measuring instrument
  • Coordinate Measuring Machine
  • Routine inspection of calipers
