Stainless Steel Flange Bolt

  • Home
  • Stainless Steel Flange Bolt

SS 304 Flanged Hex Head Bolt and ASTM A193 B8M CL2 12 Point Screw manufacturer in India

Flange Bolt is a non-serrated and sometimes called as frame bolts. It is a fastener that features a skirt extending outwards from the head in a 360 degrees angle. While its ridge or skirt surrounding their heads makes them easily identifiable, it is necessary to mention that the design serves a greater purpose in order to ensure the even distribution of force across a greater surface. It features a broad surface area beneath the head to provide a smooth distribution of securing pressure. It has a circular flange under the head that acts like a washer to distribute the load. It is used in automotive applications, plumbing, and more. Stainless Steel Flange Bolts are capable of providing the same bonding power as a washer, although in some applications they can be employed along with regular bolts paired with washers. Flange Head Screws are available as either serrated or non-serrated hexagons. It is a strong one piece fastener which is designed to spread the clamping load without the need for a washer. Though the non-serrated flange screw is robust enough for most purposes, it is an ideal choice for heavier industrial applications. It is self-locking which provides a large amount of vibration resistance. Because no washer is required, is secured much more quickly and efficiently than many other screws.  Hex Flange Bolt is a regular hex head bolts with built-in washer and externally threaded body. It comes with plain or serrated flange configuration and is commonly used in automotive industry, especially in truck and heavy vehicular frames. Flange Head Bolt is usually used in vehicle frames, especially in trucks and anywhere a head bolt is required. They feature a nozzle, thereby it speeding assembles while eliminating the washer. They provide four times the bearing area than of the standard hex screw.

Stainless Steel Flange Bolts

Stainless Steel Flange Bolts

Flange Head Screws

Flange Head Screws

Serrated Flange Bolt

Serrated Flange Bolt

India's leading manufacturer and exporter of Forged and Machined Stainless Steel Flange Bolts as per ISO 4162/ DIN 6921 standard

Stainless Steel Flange Bolt

Table of contents

DIN 6921 Flange Bolt Specifications

Metric Screw Thread (mm) and Unified Screw Thread (inches) 316 Stainless Steel 12 Point Bolt Head & ASTM A193 Grade B8 Flange Head Screws and flange bolt manufacturer and supplier in Mumbai

DIN/ ISO Standard DIN 6921/ ISO 4162
Stainless Steel Flange Bolt Size
  • Cold Forming process: M2-M24
  • Hot Forging process: M24-M100, 1-1/2” Dia, up to 1100mm lg
  • CNC Machining for M100 / 4” Dia, up to 1500mm lg

Manufacturing M2, M3, M3.5, M4, M5, M6, M8, M10, M12, M14, M16, M18, M20, M22, M24, M27, M30, M33, M36, M42, M45, M48 to M160 and Custom Metric Stainless Steel Flange Bolt, special offer on m10 flange bolt
Flange Bolt Size Inch
  • Dia: 1/2" - 4.0"
  • Length: 1/2" - 52"
Flange Bolt Size Metric
  • Dia: M10 - M110
  • Length: 12 - 1200MM
Thread Partial thread/ Full thread
Standard

IS, ANSI, ASTM, DIN, ISO, JIS, GB, ASME, BS, UNI, CSN, EU, IFI, PN, and all International Standards

  • Indian IS
  • European EU
  • GB/T5783, GB/T5782, GB5783
  • American ASME
  • American SAE
  • International ISO
  • German DIN
  • Spanish CSN
  • British BS
  • Italian UNI
  • Polish PN
  • ANSI B 18.2.4 2M
  • ANSI B 28.2.4 1M
  • ANSI - American National Standards Institute
SS Flange Bolt British standards
  • BS 6105 a2-70
  • BS 6105 a4-70
  • BS 6105 a4-80
  • BS 6105 a2-50
Length 3 mm to 200 mm
Stainless Steel Flange Bolt US Threads METRIC, BSW, BSF, UNK threads, Unified national coarse (UNC), Unified national extra fine (UNEF), Unified national fine (UNF), UNJC and UNJF threads, UNR threads, Constant-pitch threads
UTS - Unified Thread Standard NPT, UNS, UNC, UNF, NPTF, UNEF
Dimensions ASME B18.6.3 **Exception: Flange Bolt 6 inches and shorter are fully threaded.
Tolerance +/-0.01mm to +/-0.05mm
Head drive Phillips/Slot, Phillips Head, Slotted Head, Six-Lobe, etc
Flange Bolt Surface Finish Geometry, Stainless steel: Passivated, Zinc (yellow, blue, white, black), anodizing, black oxide, Dacroment, plated zinc-nickel, nickel plated, Self-Colour, Hot Dip Galvanised (HDG), Sherardized, Bright Zinc Plated (BZP), Mechanically Applied coating and some special one like DACROMET
Finish/ Passivation of Stainless Steel Flange Bolt Accordance to ASTM A380/A380M
Material Origin Stainless Steel Flange Bolt are Western European. Eastern origin possible on request.
Manufacturing process Wire Drawing, Cold Heading, Heat Treatment, Inspection, Insert tapping, Surface Plating, Packing
Stainless Steel Flange Bolt Surface Coating
  • Teflon
  • Xylon
  • Ptfe Coated Flange Bolt
  • Hot Dipped Galvanized
  • Phosphate
  • Manganese Phosphate
  • Zinc Phosphate
  • Cadmium
  • ZAC (Zinc Alluminium Flake Coating)
  • Zinc Electro Plating (Hexavalent or Trivalent Chrome)

All Flange Bolt surface finishes can be supplied including Galvanised, Zinc, Sherardized, Dacromet, Electroless Nickel, Geomet & PTFE.
Flange Bolt Surface treatment
  • Anodizing
  • Sand blasting
  • Polish
  • Rust preventive oil
  • Black oxide coating
  • Hot dip galvanized
  • Heat-disposing
  • Passivation
  • Electroplating color (blue, black zinc, white, Ni, Cr, copper, tin, silver)
Top Manufacturers Omni, APL, Unbrako, Kundan, Deepak Fasteners, Sundaram Precision, Infasco, Caparo, EBY Fastener, SPAX® Screws, GKW Etc.
Stainless Steel Flange Bolt marking and Packing
  • Flange Bolt Marking as per product specification
  • Wooden Pallet, Canton, Carton / Small Box or custom
  • Pallet size: Standard Euro Pallet 110* 80 *90 CM
  • Carton size : 36* 24 *16 CM & 36 *24 *12 CM  or custom
Why Rolex Metal Distributors?
  • Based in India, established in Year 2008
  • Best Price in India compared to China
  • High precision threads
  • Highly professional and technical team
  • Quick Response
  • Always final Inspection before shipment
  • Wide International network : Western Europe, Eastern Europe, Middle East, Southeast Asia, North America, and South America
  • Pre-production Flange Bolt sample before mass production
MOQ 5 pieces
Preferred Flange Bolt Drawing Formats JPEG, PDF, CAD, STP, IGS
Test Certificates
  • Manufacturer Test Certificate (MTC) as per EN 10204 / 3.1,
  • Flange Bolt Tensile testing to ISO 898-1
  • Suitability test for calibrated preload to EN 14399-10
  • Suitability for preloading to EN 14399-2
  • Hardness testing to ISO 6508-1
  • Tri-Roll Thread Comparators
  • Flange Bolt Charpy Impact testing in accordance with ISO 148-1
  • Nut proof load testing to ISO 898-2
  • Calibrated gauges and tools
Free Samples of flange bolts and nuts Yes
Delivery time Regular product is about 7-15 days, custom product will according to special requirement
Payment Terms T/T, Western Union, Paypal, L/C or Trade Assurance 30% deposit & balance before shipping
Common Flange Bolt material grades
  • Stainless Steel Flange Bolt: 304, 316, 316L, 2205, 410, 431, 416, 440C, 18-8, 4.8, 8.8, A2, A4, A2-50, A2-70, A2-80, A4-50, A4-70, A4-80, A193 B8M, A193 B6, A193 B7m, A193 B8 Flange Bolt
  • Carbon Steel Flange Bolt : A193 Grade B7, A320 L7
  • Alloy steel Flange Bolt: SCM435, C10B21, C10B33, ASTM A193 Grade B16
  • High Tensile Flange Bolt: 10.9 Grade, 12.9 Grade, 8.8 Grade Flange Bolt
  • Brass Flange Bolt: C36000 ( C26800), C37700 ( HPb59), C38500( HPb58), C27200CuZn37), C28000(CuZn40)
  • Bronze Flange Bolt: C51000, C52100, C54400 etc
  • Aluminum Flange Bolt: Al6061, Al6063 etc
  • Titanium Flange Bolt: TAD, TA1-TA8, TB2, TC1-TC10
Port of Dispatch Mumbai or Kalamboli ports in Maharashtra state of India
Flange Bolt Application and Uses Industrial, Wind tower, Railway, Nuclear power, Construction, Electronic, and Automotive industry
ISO - International Organization for Standardization

Specialized manufacturer of

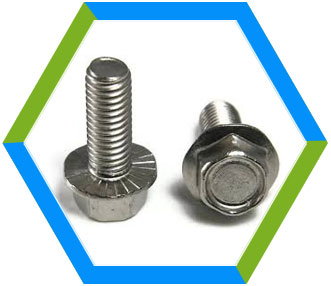

Serrated Flange Bolts

Serrated Flange Bolts

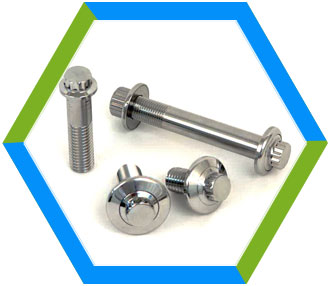

12-Point Flange Bolts

12-Point Flange Bolts

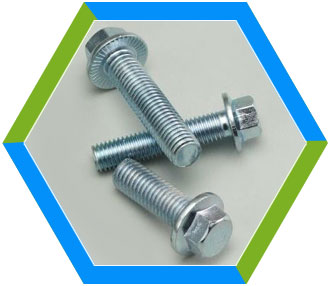

Hex Flange Bolt

Hex Flange Bolt

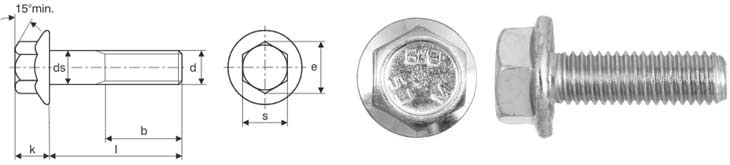

Metric Stainless Steel Flange Bolt Size Chart in mm

Flange Bolt Size Chart in mm

Alloy Steel Grades: 8.8, 10.9
Finish: Self, Bright Zinc, Black, and Hot Dip Galvanized

Nom. Dia. (d) M6 M8 M10 M12 M14 M16 M20
Thread Pitch 1 1.25 1.5 1.75 2 2 2.5
Thread Length (b) L < 125mm 18 22 26 30 34 38 46
125-200mm – 28 32 36 40 44 52
L > 200mm – – 45 49 53 57 65
ds Min. 6 8 10 12 14 16 20
Max. 5.82 7.78 9.78 11.73 13.73 15.73 19.67
K Max. 6.6 8.1 9.2 11.5 12.8 14.4 17.1
Flange Diameter 14.2 18 22.3 26.6 30.5 35 43
e Min. 10.95 14.26 16.5 17.62 19.86 23.15 29.87
s Min. 9.78 12.73 14.73 15.73 17.73 20.67 26.67
Max. 10 13 15 16 18 21 27

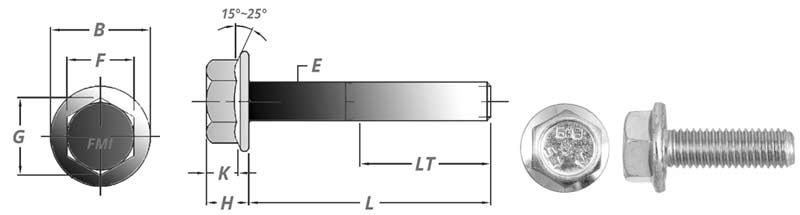

Metric Heavy Hex Flange Bolt

(B18.2.3.9M) | Units: mm

Metric Heavy Hex Flange Bolt

Nominal
Size of Flange Bolt

 Width
Across Flats
(F)

Width
Across
Corners
(G)



Flange
Diameter
(B)

 Body
Diameter
(E)		 Head
Height
(H)

Hex
Height
(K)

Thread
Length
(LT)
Max Min Max Min Max Max Min Max Min Basic
M5 8.00 7.64 7.44 8.56 11.80 5.00 4.82 5.80 2.80 16.00
M6 10.00 9.64 8.56 10.80 14.20 6.00 5.82 6.60 3.40 18.00
M8 13.00 12.57 10.80 14.08 18.00 8.00 7.78 8.10 4.20 22.00
M10 15.00 14.57 14.08 16.32 22.30 10.00 9.78 10.40 5.70 26.00
M12 18.00 17.57 16.32 19.68 26.60 12.00 11.73 11.80 6.10 30.00
M14 21.00 20.16 19.68 22.58 30.50 14.00 13.73 13.70 7.10 34.00
M16 24.00 23.16 22.58 25.94 35.00 16.00 15.73 15.40 8.70 38.00

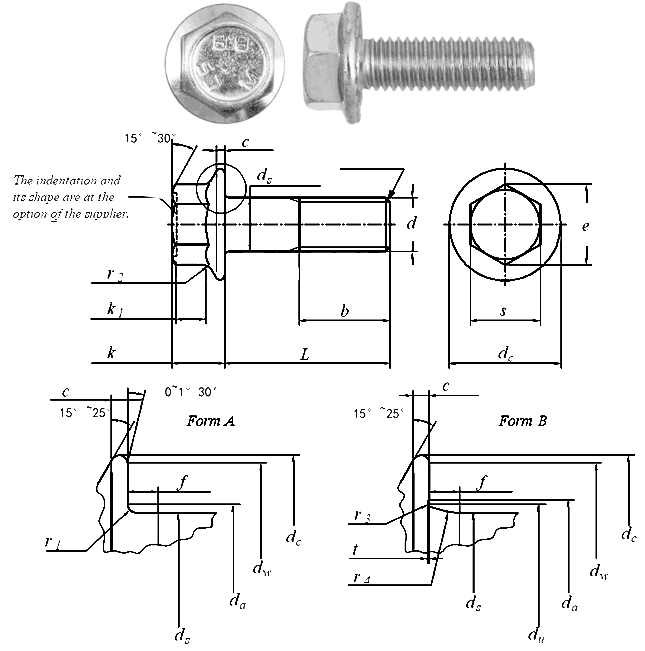

DIN 6921 weight chart

DIN 6921 weight chart

Unit: mm

Flange Bolt Thread
d		 M5 M6 M8 M10 M12 M14 M16 M20
P Pitch Coarse thread 0.8 1 1.25 1.5 1.75 2 2 2.5
Fine thread-1 / / 1 1.25 1.5 1.5 1.5 1.5
Fine thread-2 / / / 1 1.25 / / /
b   L≤125 16 18 22 26 30 34 38 46
  125＜L≤200 / / 28 32 36 40 44 52
  L＞200 / / / / / / 57 65
c   min 1 1.1 1.2 1.5 1.8 2.1 2.4 3
da Form A max 5.7 6.8 9.2 11.2 13.7 15.7 17.7 22.4
Form B max 6.2 7.4 10 12.6 15.2 17.7 20.7 25.7
dc   max 11.8 14.2 18 22.3 26.6 30.5 35 43
ds   max 5 6 8 10 12 14 16 20
  min 4.82 5.82 7.78 9.78 11.73 13.73 15.73 19.67
du   max 5.5 6.6 9 11 13.5 15.5 17.5 22
dw   min 9.8 12.2 15.8 19.6 23.8 27.6 31.9 39.9
e   min 8.71 10.95 14.26 16.5 17.62 19.86 23.15 29.87
f   max 1.4 2 2 2 3 3 3 4
k   max 5.4 6.6 8.1 9.2 11.5 12.8 14.4 17.1
k1   min 2 2.5 3.2 3.6 4.6 5.1 5.8 6.8
r1   min 0.25 0.4 0.4 0.4 0.6 0.6 0.6 0.8
r2   max 0.3 0.4 0.5 0.6 0.7 0.9 1 1.2
r3   min 0.1 0.1 0.15 0.2 0.25 0.3 0.35 0.4
r4   ≈ 3 3.4 4.3 4.3 6.4 6.4 6.4 8.5
s   max=nominal size 8 10 13 15 16 18 21 27
  min 7.78 9.78 12.73 14.73 15.73 17.73 20.67 26.67

Metric Hex Flange Nuts are made to the dimensional requirements of DIN 6923.

Inch
Size Width Across Flats Flange Diameter Thickness
S D H
Nom Max Max
1/4 7/16 .594 .300
5/16 1/2 0680 .365
3/8 9/16 .810 .425
7/16 11/16 .937 .495
1/2 3/4 1.070 .555
5/8 15/16 1.330 .690
3/4 1 1/8 1.585 .825
7/8 1 5/16 1.750 .787
1 1 1/2 2.060 .900

Hex Flange Nuts are made to the dimensional requirements of IFI – 111.

Metric
Size Width Across Flats Flange Diameter Thickness
S D H
Nom Max Max
M6 x 1.0 10 14.2 6
M8 x 1.25 13 17.9 8
M10 x 1.50 15 21.8 10
M12 x 1.75 18 26 12
M16 x 2.0 24 34.5 16
M20 x 2.5 30 42.8 20

Hex Flange Bolt Standard

Serrated Flange Bolts Manufacturing Specifications:

  • ASTM
  • ASM
  • ASME
  • FF-S-85
  • FF-S-86
  • FF-S-92
  • MIL-S-1222
  • MIL-DTL-1222

DIN 6921 ISO equivalent

Type DIN DIN EN ISO DIN EN DIN ISO Comparable ISO Standard Date of current standard/modified Replacement standard Description
Hexagon flange bolts 6921 1665 8102 1998-11 Hexagon bolts with flange, heavy series Dimensions partially changed;
width across flats according to ISO 272; strength
12.9 omitted

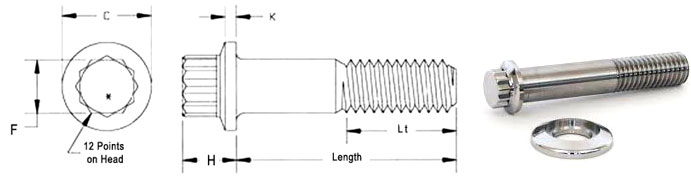

12 Point Flange Bolt Dimensions

12 Point Flange Bolt Dimensions

Thread Size

M5

M6

M8

M10

M12

M14

M16

M20

Pitch

0.8

1

1.25

1.5

1.75

2

2

2.5

L (mm)

6-2000

6-2000

6-2000

6-2000

6-2000

6-2000

6-2000

6-2000

Thread Size

1/4"

5/16"

3/8"

7/16"

1/2"

9/16"

5/8"

3/4"

L (mm)

1/4"-80"

1/4"-80"

1/4"-80"

1/4"-80"

1/4"-80"

1/4"-80"

1/4"-80"

1/4"-80"

Standards :

DIN6921 , ANSI, BS , JIS B 1118, GB and Non-standard.

Mechanical  Properties:

4.6, 4.8, 5.6, 5.8, 6.8, 8.8, 9.8, 10.9, 12.9

2, 5, 8 10

Surface Treatment:

Plain, Bule/White/Yellow Zinc, Black , Black Zinc, Mechanical Zinc,  Hot Dip Galvanized, Nickel and Dacro.

Sizes:

Dimension :6mm–64mm ; 1/4"-2-1/2"

Length: 6mm–2000mm ; 1/4"-80"

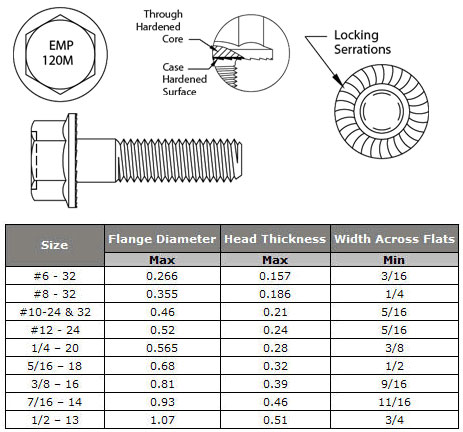

Serrated Flange Bolt Dimensions

Serrated Flange Bolt Dimensions

Stainless Steel Flange Bolt Price List

Rolex Metal Distributors offer Annealing heat treatments for High Tensile Stainless Steel Metric Flange Bolts, available in 316 / 410/ 431/ 416/ 440C, A4-70, A2-70, and 18-8 Grades

Products FOB Price US $
Stainless Steel M4 M6 M8 M10 M12 DIN 6921 class 4.8.8.8 10.9 12.9 Hex Flange Bolt US $0.05/ Piece
customized metric Serrated titanium 12 point flange Bolt and Nut m6 m10 Stainless Steel hex flange bolt US $0.005-$0.20/ Piece
Hexagon Head DIN 6921 Flange Bolt Stainless Steel US $0.08-$0.15/ Piece
DIN6921 serrated full thread zinc grade 8.8 hex flange bolt Stainless Steel US $0.01-$0.10/ Piece
High strength ss304 ss316 Stainless Steel flange Bolt US $0.50-$1.00/ Piece
Grade 5 6AL4V M10x1.25x25mm 30mm 40mm Titanium Hex Flange Bolts US $0.10-$3.20/ Piece
Stainless Steel 12 point flange bolt US $0.50-$2.00/ Piece
stainless steel flanged socket head cap screw US $0.001-$0.30/ Piece
Stainless steel din 6921 hex flange anchor bolts US $0.053/ Piece
Stainless steel hex flange bolts & m8 1.25 flange bolt US $0.03-$0.05/ Piece
ISO7380 Stainless Steel 304 M3 M4 M5 M6 M8 Pan Mushroom Hex Flange Socket Head Bolt with Washer US $0.02-$0.20/ Piece
DIN 6921 M6-M16 Zinc plated Flange Bolt US $0.50-$5.00/ Piece
A2 Stainless Steel DIN 6921 Hex Flange Bolt, m6x16 flange bolt US $0.01-$0.05/ Piece
High Tensile SUS304 M8 M10 M12 Hex Flange Bolts US $0.20/ Piece
din 6921 metric sizes m2 m6 m8x16 m14 m19 m20 m21 2.5mm 3/8 anti theft hexagon head flange bolt US $0.03-$0.50/ Piece

Call us or send us an email to marketing@rolexmetals.com for more details.

Types of Flange Bolt

Manufacturer of Marine grade Stainless Steel Automotive Flange Bolts, best price of SS 304L Serrated Flange Bolt in Mumbai

Stainless Steel Flange Bolt

Stainless Steel Flange Bolt

Hex Flange Bolt

Hex Flange Bolt

Flange Head Bolt

Flange Head Bolt

Automotive Flange Bolts

Automotive Flange Bolts

Metric Flange Bolts

Metric Flange Bolts

12 Point Bolt Head

12 Point Bolt Head

12 Point Flange Bolt

12 Point Flange Bolt

Stainless Steel Flange Bolt Material and Grades

Special offer on M3 M4 M5 M6 M8 316 Stainless Steel Flange Bolts, View standard, torque chart and dimensions in mm, manufacturer of SS 304 Hex Flange Bolt in custom sizes and lengths

  • A4 Flange Bolt
  • 18-8 Stainless Steel Flange Bolt
  • A2-70 Flange Bolt
  • 316 Stainless Steel Flange Bolt
  • 310 Stainless Steel Flange Bolt
  • ASTM A193 B8T Flange Bolt (321)
  • 304 Stainless Steel Flange Bolt
  • 316L Stainless Steel Flange Bolt
  • 304H Stainless Steel Flange Bolt
  • 18-8 Stainless Steel Flange Bolt
  • 317L Stainless Steel Flange Bolt
  • ASTM A193 Grade B7m Flange Bolt
  • A4-70 Flange Bolt
  • 347 Stainless Steel Flange Bolt
  • 17-4 PH Flange Bolt
  • 410 Stainless Steel Flange Bolt
  • A2 Flange Bolt
  • 4.8 Flange Bolt
  • ASTM A193 B6 Flange Bolt (410)
  • 304L Stainless Steel Flange Bolt
  • ASTM A193 Grade B8 Flange Bolt
  • 904L Stainless Steel Flange Bolt
  • A4-80 Flange Bolt
  • 317 Stainless Steel Flange Bolt
  • ASTM A193 Grade B8M Flange Bolt
  • ASTM A193 B8C Flange Bolt (347)
  • 316 Stainless Flange Bolt
  • 8.8 Flange Bolt
  • Duplex 2205 Flange Bolt
  • 321 Stainless Steel Flange Bolt

Flange Bolt Application

  • Auto wheel
  • Nuclear Energy Sector
  • Defence Industry
  • Oil & Gas Industries
  • Petroleum Industries
  • Aerospace Industry
  • Chemical Industry



Stainless Steel Flange Bolt Testing Tool & Equipment

  • Coordinate Measuring Machine
  • Micrometer
  • Smooth plug gauge
  • Thread gauge
  • Roughness tester
  • Routine inspection of calipers
  • Image measuring instrument
Types of fasteners
Flanges

Fittings

Pipes

Weight Calculator

© 2020 All Rights Reserved by Rolex Metal Distributors

We are On:
