316 Stainless Steel Heavy Hex Nuts and SS 304 Hex Nut manufacturer in India

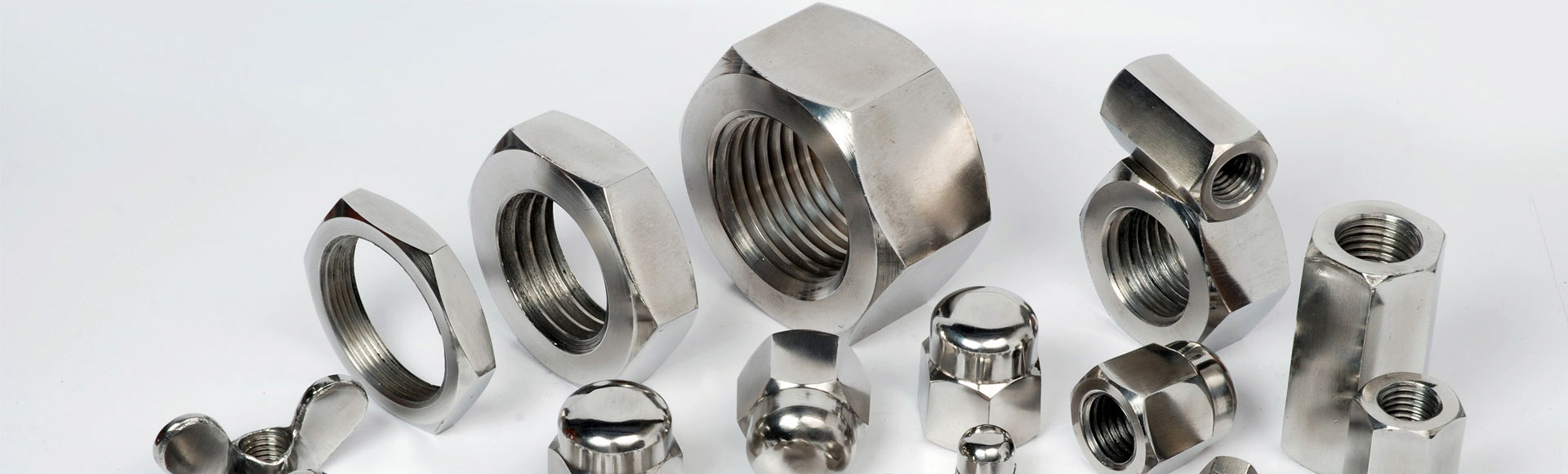

SS Hex Nut

Rolex Metal Distributors is one of the oldest & PED approved Hex Nuts manufacturers, which can be avail in various material grades according to the requirements of the customers. It is been manufactured by using high quality raw material with the guidance of our qualified technical team. Stainless Steel Hex Nuts is one of the most common nuts available and are used with anchors, bolts, screws, studs, threaded rods and on any other fastener that has machine screw threads. Hex is short form of hexagon, which means they have six sides. Hexagon Nut are also known as finished hex nuts, hex full nuts. Lock washers may use with hex nuts. Its size refers to its nominal thread diameter. Its typically, sizes range from 1/4" - 2 1/2" and its size are specified in inches.

SS 304 Hex Nut has a minimum of 18% chromium and 8% nickel, combined with a maximum of 0.08% carbon. It is defined as Chromium-Nickel austenitic alloy nuts. It provides excellent corrosion resistance to a wide range of corrosive environments. It exhibit good machinability and have excellent weld-ability characteristics with or without the addition of filler metals.  18-8 SS Hex Nut generally refers to portions of the chemical composition, in this case, chromium and nickel. In raw form it is non-magnetic but can become magnetic as the microstructure is changed through cold-working. In A2-70 Hex Nut, “70” denotes the minimum tensile strength to be met by the hex nut. Therefore, it is an austenitic, acid proof stainless grade which has been cold worked to provide a minimum tensile strength of 700N/mm² (MPa). Heavy Hex Nuts is thicker and heavier in weight. Its part has a larger diameter across the flats and it also needs larger sockets and wrenches when being installed. The load strength is far higher compared to standard hex nut that means that it can bear more weight easily.

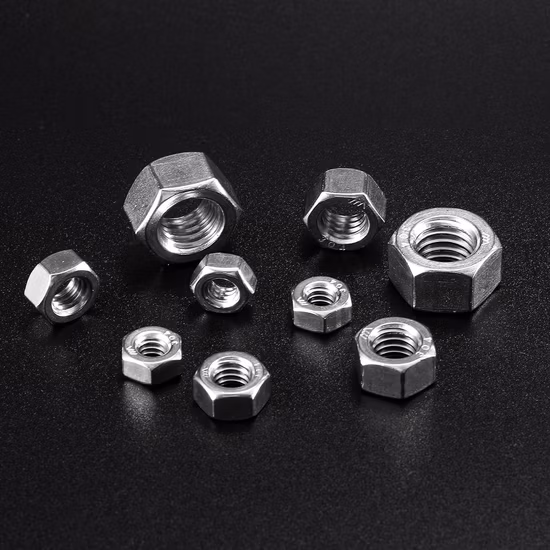

Stainless Steel Hex Nuts

Stainless Steel Hex Nuts

SS 304 Hex Nut

SS 304 Hex Nut

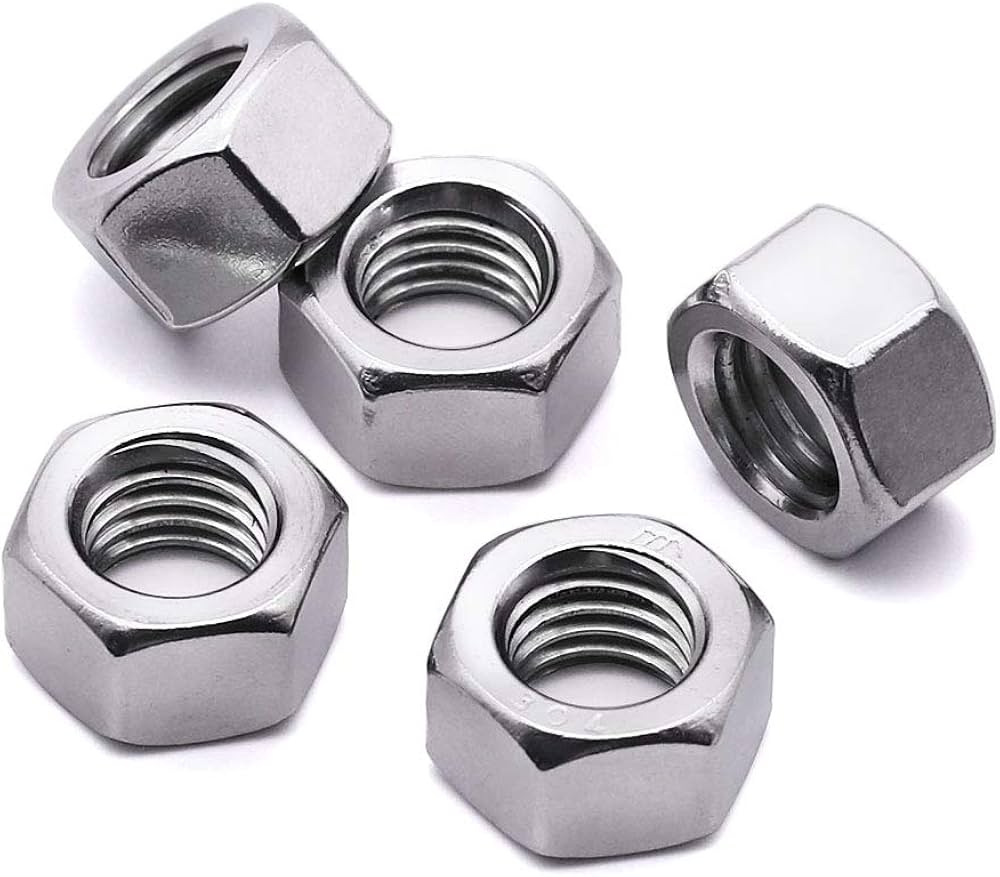

18-8 SS Hex Nut

18-8 SS Hex Nut

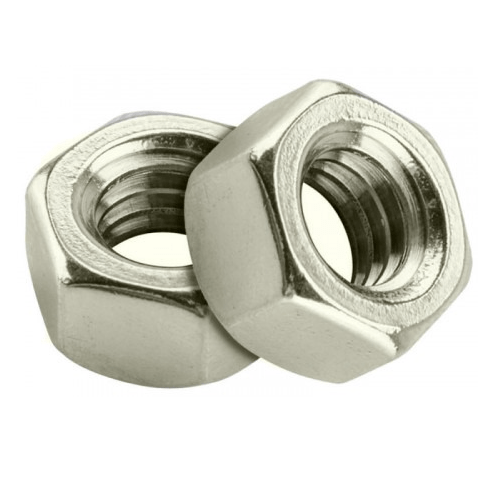

A4-50 Hex Nuts

A4-50 Hex Nuts

316 Stainless Steel Hex Nuts

316 Stainless Steel Hex Nuts

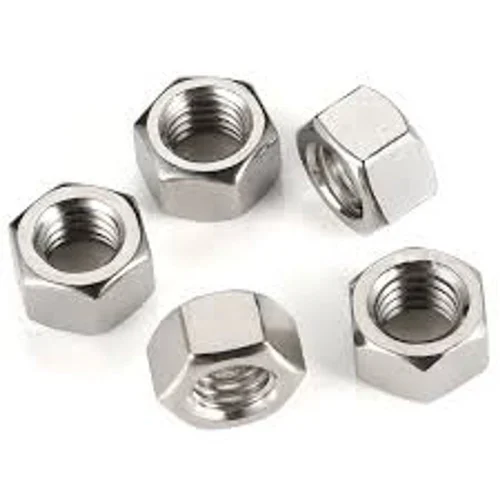

Duplex 2205 Hex Nuts

Duplex 2205 Hex Nuts

ASTM A194 8M Slotted Hex Nuts manufacturer in India offers Extra Fine UNEF threads, best price of 316 Stainless Steel Large Machine Hex Nuts & ACME 18-8 SS Finished Hex Nuts as per ASTM F594/ ISO 4032 standard

Stainless Steel Hex Nuts

Table of contents

Stainless Steel Hex Nuts Specifications

View SS grade A2-70 Long Hex Nut size chart, dimensions and weight, best price of M3 M4 M5 M8 M6 M10 316 Stainless Steel Hex Nuts & ASTM A194 Grade 8 Hexagon Nut in Mumbai

DIN Standard of Hex Nuts DIN 934, DIN 982, DIN 985, DIN 936, DIN 929, DIN 1587, DIN 439, DIN 315
British standards of Hex Nuts BS 57
Stainless Steel Hex Nuts Size
  • Cold Forming process: M2-M24
  • Hot Forging process: M24-M100, 1-1/2” Dia, up to 1100mm lg
  • CNC Machining for M100 / 4” Dia, up to 1500mm lg

Manufacturing M2, M3, M3.5, M4, M5, M6, M8, M10, M12, M14, M16, M18, M20, M22, M24, M27, M30, M33, M36, M42, M45, M48 to M160 and Custom Metric Stainless Steel Hex Machine Nuts
Hex Nuts Size Metric
  • Dia: M10 - M110
  • Length: 12 - 1200MM
Hex Nuts Size Inch
  • Dia: 1/2" - 4.0"
  • Length: 1/2" - 52"
Hex Machine Nuts Standard

IS, ANSI, ASTM, DIN, ISO, JIS, GB, ASME, BS, UNI, CSN, EU, IFI, PN, and all International Standards

  • ANSI B 18.2.4 2M
  • ANSI B 28.2.4 1M
  • ANSI - American National Standards Institute
  • GB/T5783, GB/T5782, GB5783
  • American ASME
  • Indian IS
  • International ISO
  • American SAE
  • German DIN
  • Spanish CSN
  • British BS
  • Italian UNI
  • Polish PN
  • European EU
SS Hex Nuts British standards
  • BS6105 A2-70 Hex Nuts
  • BS6105 A4-70 Hex Nuts
  • BS6105 A4-80 Hex Nuts
  • BS6105 A2-50 Hex Nuts
Machine Hex Nuts Length 3 mm to 200 mm
Stainless Steel Hex Nuts US Threads METRIC, BSW, BSF, Unified national coarse (UNC), Unified national fine (UNF), Unified national extra fine (UNEF), UNJC and UNJF threads, UNK threads, UNR threads, Constant-pitch threads
Thread
  • Acme Hex Nut
  • Trapezoidal Hex Nut
UTS - Unified Thread Standard UNC, UNF, NPT, UNS, UNEF, NPTF
SS Hex Nuts Dimensions ASME B 18.2.2
Metric Hex Nuts Tolerances +/-0.01mm to +/-0.05mm
Head drive Phillips/Slot, Phillips, Slotted, Six-Lobe, etc
Hex Nuts Surface Finish Zinc (yellow, blue, white, black), black oxide, Dacroment, anodizing, plated zinc-nickel, nickel plated, Geometry, Stainless steel: Passivated, Self-Colour, Hot Dip Galvanised (HDG), Sherardized, Bright Zinc Plated (BZP), Mechanically Applied coating and some special one like DACROMET
Finish/ Passivation of Stainless Steel Hex Nuts Accordance to ASTM A380/A380M
Stainless Steel Hex Nuts Manufacturing process
  • Heading
  • Machining
  • Threading
  • Cold Heading
  • Heat treatment
  • Plating
  • Baking
  • Surface Plating
  • Inspection
  • Package
  • Shipping


Material Origin Stainless Steel Hex Nuts are Western European. Eastern origin possible on request.
Stainless Steel Hex Nuts Surface Coating
  • Ptfe Coated Hex Nuts
  • Hot Dipped Galvanized
  • Phosphate
  • Teflon
  • Xylon
  • Zinc Phosphate
  • Manganese Phosphate
  • Zinc Electro Plating (Hexavalent or Trivalent Chrome)
  • ZAC (Zinc Alluminium Flake Coating)
  • Cadmium
  • ASTM A153 Zinc coating (hot dip)
  • ASTM B695 zinc coating
  • ASTM F1941 Electrodeposited coatings (Zinc plating).
  • ASTM F2329 Zinc coating, hot dip

All Hex Nuts surface finishes can be supplied including Galvanised, Zinc, Sherardized, Dacromet, Electroless Nickel, Geomet & PTFE.
Hex Nuts Surface treatment
  • Polish
  • Passivation
  • Black oxide coating
  • Anodizing
  • Sand blasting
  • Rust preventive oil
  • Heat-disposing
  • Hot dip galvanized
  • Electroplating color (blue, black zinc, white, Ni, Cr, copper, tin, silver)
Other Stainless Steel Hex Nuts manufacturers Omni, APL, Unbrako, Kundan, Deepak Fasteners, Sundaram Precision, Infasco, Caparo, EBY Fastener, SPAX® Screws, GKW Etc.
Stainless Steel Hex Nuts marking and Packing
  • Hex Nuts Marking as per product specification
  • Wooden Pallet, Canton, Carton / Small Box or as required
  • Carton size : 36* 24 *16 CM & 36 *24 *12 CM  or as required
  • Pallet size: Standard Euro Pallet 110* 80 *90 CM
Why Rolex Metal Distributors?
  • Based in India, established in Year 2008
  • Wide International network : Western Europe, Eastern Europe, Middle East, Southeast Asia, North America, and South America
  • Best Price in India compared to Stainless Steel Hex Nuts manufacturers in China
  • Highly professional and technical team
  • Always final Inspection before shipment
  • Pre-production Hex Nuts sample before mass production
  • High precision threads
MOQ 5 pieces
Preferred Hex Nuts Drawing Formats JPEG, PDF, CAD, STP, IGS
Test Certificates provided by Stainless Steel Hex Nuts manufacturers
  • Manufacturer Test Certificate (MTC) as per EN 10204 / 3.1,
  • Hex Nuts Tensile testing to ISO 898-1
  • Hardness testing to ISO 6508-1
  • Suitability for preloading to EN 14399-2
  • Tri-Roll Thread Comparators
  • Hex Nuts Charpy Impact testing in accordance with ISO 148-1
  • Suitability test for calibrated preload to EN 14399-10
  • Nut proof load testing to ISO 898-2
  • Calibrated gauges and tools
Free Samples Yes
Delivery time Regular product is about 7-15 days, custom product will according to special requirement
Payment Terms T/T, Western Union, Paypal, L/C or Trade Assurance 30% deposit & balance before shipping
Common Hex Nuts material grades
  • Stainless Steel Hex Nuts: 18-8 Stainless Steel, 304, 316, 316L, 2205, 410, 431, 416, 440C, 18-8, 4.8, 8.8, A2, A4, A2-50, A2-70, A2-80, A4-50, A4-70, A4-80, A194 8M, A194 Grade 6, A194 7m, A194 Grade 8 Hex Nuts
  • Carbon Steel Hex Nuts : A194 Grade 1, A194 Grade 2, A194 Grade 2HM, A194 Grade 4, A194 Grade , A194 Grade 7m, A194 Grade 2H Hex Nuts
  • Alloy steel Hex Nuts: SCM435, C10B21, C10B33
  • High Tensile Hex Nuts: 10.9 Grade, 12.9 Grade, 8.8 Grade Hex Nuts
  • Brass Hex Nuts: C36000 ( C26800), C37700 ( HPb59), C38500( HPb58), C27200CuZn37), C28000(CuZn40)
  • Bronze Hex Nuts: C51000, C52100, C54400 etc
  • Aluminum Hex Nuts: Al6061, Al6063 etc
  • Titanium Hex Nuts: TAD, TA1-TA8, TB2, TC1-TC10
Port of Dispatch Mumbai or Kalamboli ports in Maharashtra state of India
Hex Nuts Application and Uses Industrial, Wind tower, Railway, Nuclear power, Construction, Electronic, and Automotive industry
ISO - International Organization for Standardization

Manufacturer of

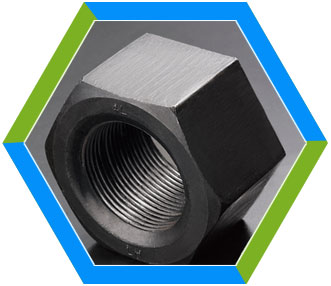

Heavy hex nuts

Heavy hex nuts

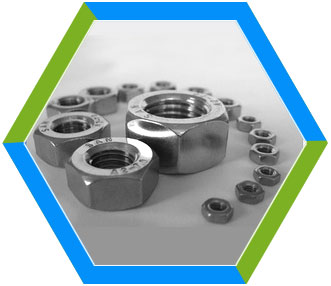

Hex machine screw nuts

Hex machine screw nuts

Stainless Steel Hex Nuts Price List

Find here 18-8 Stainless Steel Thin Hex Nuts Metric Screw Thread (mm) and Unified Screw Thread (inches) and see the difference between Hex vs Heavy Hex Nuts

Products FOB Price US $
Hex Nut SS304 Din934 US $32.53-$630.81/ Box
Competitive Price of Hex Flange Nut US $0.03-$0.06/ Piece
M7 M20 M22 Grade 10.8 Steel Hex Nut US $0.03-$0.06/ Piece
Hexagon Thin Nut & Hex machine screw nuts US $1,000.00/ Ton
Hex Thin Panel Nut, Zinc Plated US $1,000.00/ Ton
M20 M12 Astm A563 M16-2.0 HDG High Strength Heavy Hex Nut US $0.01-$0.15/ Piece
Zinc Plated DIN982 Grade8 Hexagonal Nylon Lock Nut US $1,400.00-$1,600.00/ Kilogram
High Precision Custom Size m3-m20 Brass Copper Hex Nuts US $0.20-$0.50/ Piece
stainless black insert thin hexagon head nut US $0.005-$0.02/ Piece
din934 galvanized m6 m5 hex nut US $0.005-$0.02/ Piece
304 Stainless Steel heavy hex head coupling nuts din 934 US $0.02-$0.30/ Piece
m3 m6 m10 m12 m25 m32 m60 m64 hot dip galvanized stainless steel hex nut US $0.02-$0.30/ Piece
ASTM A194/A194M Heavy Hex Nut US $0.01/ Piece
Hot Dip Galvanized Grade 2H Hex Nut US $0.01/ Piece
Nickel Plating m8 DIN 934 Hex Nut US $0.01-$0.10/ Piece
M3 M4 SS 304 Serrated Hex Flange Nut US $0.01-$0.30/ Piece
Ti6Al4V Grade 5 Titanium hex Flange Nut US $0.60-$1.80/ Piece
304 Stainless Steel Thin Hex Nut US $0.03-$0.06/ Piece

Call us or send us an email to marketing@rolexmetals.com for more details. Always buy from Stainless Steel Hex Nuts manufacturers for better price and custom sizes.

Types of Hex Nuts

Manufacturing Stainless Steel Hex Nuts in various grads such as 18-8 SS, SA 194 gr 8, 304, 316, 304L, 316L, 410, 431, 416, 440C, A4-70, and 303, don't forget to compare our price with other Stainless Steel Hex Nuts manufacturers in India

A2-70 Hex Nut

A2-70 Hex Nut

Finished Hex Nuts

Finished Hex Nuts

Slotted Hex Nuts

Slotted Hex Nuts

Stainless Steel Heavy Hex Nuts

Stainless Steel Heavy Hex Nuts

Thin Hex Nuts

Thin Hex Nuts

Long Hex Nut

Long Hex Nut

Stainless Steel Hex Nuts Dimensions in mm

Hex Nut Size Thread
Pitch		 s e m
Width
Across
Flats		 Width
Across
Corners		 Height
of
the
Nut
max. min. min. max. min.
M1.6 0.35 3.20 3.02 3.41 1.30 1.05
M2 0.4 4.00 3.82 4.32 1.60 1.35
M2.5 0.45 5.00 4.82 5.45 2.00 1.75
M3 0.5 5.50 5.32 6.01 2.40 2.15
M3.5* 0.6 6.00 5.82 6.58 2.80 2.55
M4 0.7 7.00 6.78 7.66 3.2 2.9
M5 0.8 8.00 7.78 8.79 4.7 4.4
M6 1 10.00 9.78 11.05 5.2 4.9
M8 1.25 13.00 12.73 14.38 6.80 6.44
M10 1.5 16.00 15.73 17.77 8.40 8.04
M12 1.75 18.00 17.73 20.03 10.80 10.37
M14* 2 21.00 20.67 23.36 12.8 12.1
M16 2 24.00 23.67 26.75 14.8 14.1
M18* 2.5 27.00 26.16 29.56 15.8 15.1
M20 2.5 30.00 29.16 32.95 18.0 16.9
M22* 2.5 34 33 37.29 19.4 18.1
M24 3 36 35 39.55 21.5 20.2
M27* 3 41 40 45.2 23.8 22.5
M30 3.5 46 45 50.85 25.6 24.3
M33* 3.5 50 49 55.37 28.7 27.4
M36 4 55.0 53.8 60.79 31.0 29.4
M39* 4 60.0 58.8 66.44 33.4 31.8
M42 4.5 65.0 63.1 71.3 34.0 32.4
M45* 4.5 70.0 68.1 76.95 36.0 34.4
M48 5 75.0 73.1 82.6 38.0 36.4
M52* 5 80.0 78.1 88.25 42.0 40.4
M56 5.5 85.0 82.8 93.56 45.0 43.4
M60* 5.5 90.0 87.8 99.21 48.0 46.4
M64 6 95.0 92.8 104.86 51.0 49.1

SS Hex Nuts Dimensions in inches and weight

SS Hex Nuts Dimensions in inches

Nominal
Thread
Size		 F C H Approximate
Weight
Per Nut
Width
Across Flats		 Width Across
Corners		 Thickness
Basic Max Min Max Min Basic Max Min
3/8 11/16 0.688 0.669 0.794 0.763 23/64 0.377 0.341 0.03
1/2 7/8 0.875 0.850 1.010 0.969 31/64 0.504 0.464 0.07
5/8 1-1/16 1.062 1.031 1.227 1.175 39/64 0.631 0.587 0.12
3/4 1-1/4 1.250 1.212 1.443 1.382 47/64 0.758 0.710 0.20
7/8 1-7/16 1.438 1.394 1.660 1.589 55/64 0.885 0.833 0.30
1 1-5/8 1.625 1.575 1.876 1.796 63/64 1.012 0.956 0.43
1-1/8 1-13/16 1.812 1.756 2.093 2.002 1-7/64 1.139 1.079 0.59
1-1/4 2 2.000 1.938 2.309 2.209 1-7/32 1.251 1.187 0.79
1-3/8 2-3/16 2.188 2.119 2.526 2.416 1-11/32 1.378 1.310 1.02
1-1/2 2-3/8 2.375 2.300 2.742 2.622 1-15/32 1.505 1.433 1.31
1-5/8 2-9/16 2.562 2.481 2.959 2.828 1-19/32 1.632 1.556 1.62
1-3/4 2-3/4 2.750 2.662 3.175 3.035 1-23/32 1.759 1.679 2.04
1-7/8 2-15/16 2.938 2.844 3.392 3.242 1-27/32 1.886 1.802 2.41
2 3-1/8 3.125 3.025 3.608 3.449 1-31/32 2.013 1.925 2.99
2-1/4 3-1/2 3.500 3.388 4.041 3.862 2-13/64 2.251 2.155 4.19
2-1/2 3-7/8 3.875 3.750 4.474 4.275 2-29/64 2.505 2.401 5.64
2-3/4 4-1/4 4.250 4.112 4.907 4.688 2-45/64 2.759 2.647 7.38
3 4-5/8 4.625 4.475 5.340 5.102 2-61/64 3.013 2.893 9.50
3-1/4 5 5.000 4.838 5.774 5.515 3-3/16 3.252 3.124 11.94
3-1/2 5-3/8 5.375 5.200 6.207 5.928 3-7/16 3.506 3.370 15.26
3-3/4 5-3/4 5.750 5.562 6.640 6.341 3-11/16 3.760 3.616 18.12
4 6-1/8 6.125 5.925 7.073 6.755 3-15/16 4.014 3.862 21.80

Hex Nuts Grade Markings

Understanding Hex Nuts Grade and Classification

Hex Nuts Grade
Identification
Marking		 Hex Nuts Specification Hex Nuts Material Nominal Size ub Inches Hex Nuts Proof
Load Stress ksi		 Hardness
Rockwell
Min Max
Marking
No Mark		 ASTM A563
- Grade 0		 Carbon
Steel		 1/4 thru
1-1/2		 69 B55 C32
ASTM A563
- Grade A		 Carbon
Steel		 1/4 thru
1-1/2		 90 B68 C32
ASTM A563 - Grade B Carbon Steel 1/4 thru 1 120 B69 C32
over 1
thru 1-1/2		 105
Marking ASTM A563
- Grade C		 Carbon
Steel
May be Quenched and Tampered		 1/4 thru 4 144 B78 C38
Marking ASTM A563
- Grade C3		 Atmospheric
Corrosion Resistant Steel May be Quenched and Tampered		 1/4 thru 4 144 B78 C38
Marking ASTM A563
- Grade D		 Carbon
Steel
May be Quenched and Tampered		 1/4 thru 4 150 B84 C38
Marking ASTM A563
- Grade DH		 Carbon
Steel
Quenched and Tampered		 1/4 thru 4 175 C24 C38
Marking ASTM A563
- Grade DH3		 Atmospheric
Corrosion Resistant Steel,Quenched and Tampered		 1/4 thru 4 175 C24 C38
Marking ASTM A194
- Grade 1		 Carbon
Steel		 1/4 thru 4 130 B70 -
Marking ASTM A194
- Grade 2		 Medium
Carbon Steel		 1/4 thru 4 150 159 352
Marking ASTM A194
- Grade 2H		 Medium
Carbon
Steel, Quenched and Tempered		 1/4 thru 4 175 C24 C38
Marking ASTM A194
- Grade 2HM		 Medium
Carbon
Steel, Quenched and Tempered		 1/4 thru 4 150 159 237
Marking ASTM A194
- Grade 4		 Medium
Carbon
Alloy Steel, Quenched and Tempered		 1/4 thru 4 175 C24 C38
Marking ASTM A194
- Grade 7		 Medium
Carbon
Alloy Steel,Quenched and Tempered		 1/4 thru 4 175 C24 C38
Marking ASTM A194
- Grade 7M		 Medium
Carbon
Alloy Steel, Quenched and Tempered		 1/4 thru 4 150 159 237

Stainless Steel Hex Nuts Height

Size Diameter* Height
Hex Nut Machine Screw Nut Hex Nut Jam Nut Nylock Nut Machine Screw Nut
#0 - 5/32" - - - 3/64"
#1 - 5/32" - - - 3/64"
#2 - 3/16" - - 9/64" 1/16"
#3 - 3/16" - - 9/64" 1/16"
#4 - 1/4" - - 9/64" 3/32"
#6 - 5/16" - - 11/64" 7/64"
#8 - 11/32" - - 15/64" 1/8"
#10 - 3/8" - - 15/64" 1/8"
#12 - 7/16" - - 5/16" 5/32"
1/4" 7/16" 7/16" 7/32" 5/32" 5/16" 3/16"
5/16" 1/2" 9/16" 17/64" 3/16" 11/32" 7/32"
3/8" 9/16" 5/8" 21/64" 7/32" 29/64" 1/4"
7/16" 11/16" - 3/8" 1/4" 29/64" -
1/2" 3/4" - 7/16" 5/16" 19/32" -
9/16" 7/8" - 31/64" 5/16" 41/64" -
5/8" 15/16" - 35/64" 3/8" 3/4" -
3/4" 1-1/8" - 41/64" 27/64" 7/8" -
7/8" 1-5/16" - 3/4" 31/64" 63/64" -
1" 1-1/2" - 55/64" 35/64" 1-3/64" -
* This is the diameter across the flats. It is also the size of wrench to use.

Fine Thread Hex Nuts

Fine Thread Hex Nuts

d 1 MF3x0,3* MF4x0,5* MF5x0,5* MF6x0,75* MF8x1 MF10x1
e min 6.01 7.66 8.79 11.05 14.38 18.9
s 5.5 7 8 10 13 17
m max 2.4 3.2 4 5 6.5 8

d 1 MF10x1,25 MF12x1 MF12x1,25 MF12x1,5 MF14x1,5 MF16x1,5
e min 18.9 21.1 21.1 21.1 24.49 26.75
s 17 19 19 19 22 24
m max 8 10 10 10 11 13

d 1 MF18x1,5 MF20x1,5 MF22x1,5 MF24x2 MF27x2 MF30x2
e min 29.56 32.95 35.03 39.55 45.2 50.85
s 27 30 32 36 41 46
m max 15 16 18 19 22 24

d 1 MF36x3 MF42x3 MF48x3
e min 60.79 72.09 82.6
s 55 65 75
m max 29 34 38

Stainless Steel Hex Nuts Torque Chart

Hex Nuts Nominal Diameter
Thread Pitch		 Width
Flats, S		 Width
Corners
E		 Property Classes 5 and 10 Hex Nuts Property Class 9 Hex Nuts Property Class Bearing Face
Diameter
Dw
Metala
Type		 Top
Insert		 All
Metal		 Top
Insert		 5 &
10 Hex Nuts		 9 Hex Nuts
Thickness, M Wrenching Height, M1
Max Min Max Min Max Min Max Min Max Min Max Min Min Min Min
M3 × 0.5 5.50 5.32 6.35 6.01 3.10 2.65 4.50 3.90 3.10 2.65 4.50 3.90 1.4 1.4 4.6
M3.5 × 0.6 6.00 5.82 6.93 6.58 3.50 3.00 5.00 4.30 3.50 3.00 5.00 4.30 1.7 1.7 5.1
M4 × 0.7 7.00 6.78 8.08 7.66 4.00 3.50 6.00 5.30 4.00 3.50 6.00 5.30 1.9 1.9 5.9
M5 × 0.8 8.00 7.78 9.24 8.79 5.30 4.80 6.80 6.00 5.30 4.80 7.20 6.40 2.7 2.7 6.9
M6 × 1 10.00 9.78 11.55 11.05 5.90 5.40 8.00 7.20 6.70 5.40 8.50 7.70 3.0 3.0 8.9
M8 × 1.25 13.00 12.73 15.01 14.38 7.10 6.44 9.50 8.50 8.00 7.14 10.20 9.20 3.7 4.3 11.6
bM10 × 1.5 15.00 14.73 17.32 16.64 9.70 8.70 12.50 11.50 11.20 9.60 13.50 12.50 5.6 6.2 13.6
M10 × 1.5 16.00 15.73 18.48 17.77 9.00 8.04 11.90 10.90 10.50 8.94 12.80 11.80 4.8 5.6 14.6
M12 × 1.75 18.00 17.73 20.78 20.03 11.60 10.37 14.90 13.90 13.30 11.57 16.10 15.10 6.7 7.7 16.6
M14 × 2 21.00 20.67 24.25 23.35 13.20 12.10 17.00 15.80 15.40 13.40 18.30 17.10 7.8 8.9 19.6
M16 × 2 24.00 23.67 27.71 26.75 15.20 14.10 19.10 17.90 17.90 15.70 20.70 19.50 9.1 10.5 22.5
M20 × 2.5 30.00 29.16 34.64 32.95 19.00 16.90 22.80 21.50 21.80 19.00 25.10 23.80 10.9 12.7 27.7
M24 × 3 36.00 35.00 41.57 39.55 23.00 20.20 27.10 25.60 26.40 22.60 29.50 28.00 13.0 15.1 33.2
M30 × 3.5 46.00 45.00 53.12 50.85 26.90 24.30 32.60 30.60 31.80 27.30 35.60 33.60 15.7 18.2 42.7
M36 × 4 55.00 53.80 63.51 60.79 32.50 29.40 38.90 36.90 38.50 33.10 42.60 40.60 19.0 22.1 51.1

Hex vs Heavy Hex Nuts

Hex Nut Grade Nut Style Nut Size in inch Proof Load, ksi Hardness, HBN
Plain Galvanized
A Hex 1/4 - 1-1/2 90 68 116 - 302
Heavy Hex 1/4 - 4 100 75 116 - 302
B Heavy Hex 1/4 - 1 133 100 121 - 302
Heavy Hex 1-1/8 - 1-1/2 116 87 121 - 302
C / C3 Heavy Hex 1/4 - 4 144 144 143 - 352
D Heavy Hex 1/4 - 4 150 150 248 - 352
DH / DH3 Heavy Hex 1/4 - 4 175 150 248 - 352

Finished Hex Nut Dimensions

Nominal Size or Basic Major Thread Diameter (Finished hex nut) F G H
Width
Across Flats		 Width
Across Corners		 Thickness
Basic Max Min Max Min Basic Max Min
1/4 .2500 7/16 .438 .428 .505 .488 7/32 .226 .212
5/16 .3125 1/2 .500 .489 .577 .557 17/64 .273 .258
3/8 .3750 9/16 .562 .551 .650 .628 21/64 .337 .320
7/16 .4375 11/16 .688 .675 .794 .768 3/8 .385 .365
1/2 .5000 3/4 .750 .736 .866 .840 7/16 .448 .427
9/16 .5625 7/8 .875 .861 1.010 .982 31/64 .496 .473
5/8 .6250 15/16 .938 .922 1.083 1.051 35/64 .559 .535
3/4 .7500 1-1/8 1.125 1.088 1.299 1.240 41/64 .665 .617
7/8 .8750 1-5/16 1.312 1.269 1.516 1.447 3/4 .776 .724
1 1.0000 1-1/2 1.500 1.450 1.732 1.653 55/64 .887 .831
1-1/8 1.1250 1-11/16 1.688 1.631 1.949 1.859 31/32 .999 .939
1-3/8 1.3750 2-1/16 2.062 1.994 2.382 2.273 1-11/64 1.206 1.138
1-1/2 1.500 2-1/4 2.250 2.175 2.598 2.480 1-9/32 1.317 1.245
1-5/8 1.6250 2-7/16 2.438 2.356 2.815 2.686 1-25/64 1.429 1.353
1-3/4 1.7500 2-5/8 2.625 2.538 3.031 2.893 1-1/2 1.540 1.460
2 2.0000 3 3.000 2.900 3.464 3.306 1-23/32 1.763 1.675
2-1/4 2.2500 3-3/8 3.375 3.263 3.897 3.719 1-15/16 1.986 1.890
2-1/2 2.5000 3-3/4 3.750 3.625 4.330 4.133 2-5/32 2.209 2.105
2-3/4 2.7500 4-1/8 4.125 3.988 4.763 4.546 2-3/8 2.431 2.319

Heavy Hex Nut Dimensions

Nominal Size or Basic Major Thread Diameter (Hvy Hex nut) F G H
Width Across Flats Width Across Corners Thickness
Basic Max Min Max Min Basic Max Min
1/4 .2500 1/2 .500 .488 .577 .556 15/64 .250 .218
5/16 .3125 9/16 .562 .546 .650 .622 19/64 .314 .280
3/8 .3750 11/16 .688 .669 .794 .763 23/64 .377 .341
7/16 .4375 3/4 .750 .728 .866 .830 27/64 .441 .403
1/2 .5000 7/8 .875 .850 1.010 .969 31/64 .504 .464
9/16 .5625 15/16 .938 .909 1.083 1.037 35/64 .568 .526
5/8 .6250 1-1/16 1.062 1.031 1.227 1.175 39/64 .631 .587
3/4 .7500 1-1/4 1.250 1.212 1.443 1.382 47/64 .758 .710
7/8 .8750 1-7/16 1.438 1.394 1.660 1.589 55/64 .885 .833
1 1.0000 1-5/8 1.325 1.575 1.876 1.796 63/64 1.012 .956
1-1/8 1.1250 1-13/16 1.812 1.756 2.093 2.002 1-7/64 1.139 1.079
1-1/4 1.2500 2 2.000 1.938 2.309 2.209 1-7/32 1.251 1.187
1-3/8 1.3750 2-3/16 2.188 2.119 2.526 2.416 1-11/32 1.378 1.310
1-1/2 1.5000 2-3/8 2.375 2.300 2.742 2.622 1-15/32 1.505 1.433
1-5/8 1.6250 2-9/16 2.562 2.481 2.959 2.828 1-19/32 1.632 1.556
1-3/4 1.7500 2-3/4 2.750 2.662 3.175 3.035 1-23/32 1.759 1.679
2 2.0000 3-1/8 3.125 3.025 3.608 3.449 1-31/32 2.013 1.925
2-1/4 2.2500 3-1/2 3.500 3.388 4.041 3.862 2-13/64 2.251 2.155
2-1/2 2.5000 3-7/8 3.875 3.750 4.474 4.275 2-29/64 2.505 2.401
2-3/4 2.7500 4-1/4 4.250 4.112 4.907 4.688 2-45/64 2.759 2.647
3 3.0000 4-5/8 4.625 4.475 5.340 5.102 2-61/64 3.013 2.893
3-1/4 3.2500 5 5.000 4.838 5.774 5.515 3-3/16 3.252 3.124
3-1/2 3.5000 5-3/8 5.375 5.200 6.207 5.928 3-7/16 3.506 3.370
3-3/4 3.7500 5-3/4 5.750 5.562 6.640 6.341 3-11/16 3.670 3.616
4 4.0000 6-1/8 6.125 5.925 7.073 6.755 3-15/16 4.014 3.862

Hex Nut Standard

Standard Description
AS 1112.1 Hexagon nuts, style 1, grade A & B
AS 1112.2 Hexagon nuts, style 2, grade A & B
AS 1112.3 Hexagon nuts, grade C
AS 1112.4 Hexagon thin nuts (chamfered)Product grades A and B
AS 1252 High Strength large hexagon nuts
AS 2451 Hexagon nuts with BSW threads
AS 2465 Hexagon nuts with Unified threads
ASME/ANSI B18.2.2 Heavy hex nuts
ASME/ANSI B18.2. Hex coupling nuts Table 13
ASME/ANSI B18.2.2 Hex flat jam nuts
ASME/ANSI B18.2.2 Hex flat nuts and hex flat jam nuts Table 3
ASME/ANSI B18.2.2 Hex full nuts
ASME/ANSI B18.2.2 Hex lock nuts
ASME/ANSI B18.2.2 Hex nuts and hex jam nuts Table 4
ASME/ANSI B18.2.2 Hex thick nuts
ASME/ANSI B18.2.2 Hex thick nuts Table 2
ASME/ANSI B18.2.2 Hexagon lock nuts -heavy duty
ASME/ANSI B18.2.4.1M Hex full nuts style 1
ASME/ANSI B18.2.4.2M Hex nuts style 2
ASME/ANSI B18.2.4.5M Metric hex jam nuts
ASME/ANSI B18.2.4.5M Metric hex thin nuts
ASME/ANSI B18.2.4.6M Metric heavy hex nuts
ASME/ANSI B18.2.6 Flat nuts and heavy hex flat jam nuts Table 9
ASME/ANSI B18.2.6 Heavy hex flat nuts Table 10
ASME/ANSI B18.2.6 Heavy hex nuts
EN 14399-3 High strength nuts for preloading assemblies HR system
EN 14399-4 High strength nuts for preloading assemblies HV system
EN 14399-7 High strength nuts for preloading assemblies HR system
BS 190 Pre war Hexagon full nuts (Heavy series BSW or BSF)
BS 190 Pre war Hexagon lock nuts (Heavy series BSW or BSF)
BS 1083 Hexagon full nuts
BS 1083 Hexagon lock nuts
BS 1768 Hexagon full nuts - unified threads
BS 1768 Hexagon lock nuts - unified threads
BS 1768 Hexagon thick full nuts - unified threads
BS 1769 Hexagon black full nuts - unified threads
BS 1769 Hexagon heavy black full nuts - unified threads
BS 325 Hexagon black full nuts
BS 3692 Hexagon full nuts
BS 3692 Hexagon lock nuts
BS 4190 Hexagon thin lock nuts
BS 4395 High strength large hex nuts
BS 916 Hexagon black nuts
DIN 2510-5 Reduced shank hexagon nuts
DIN 439-1 Hexagon unchamfered thin lock nuts
DIN 439-2 Hexagon thin lock nuts
DIN 555 Hexagon nuts
DIN 6915 Heavy hex nuts
DIN 74361-2A Hexagon wheel nuts
DIN 74361-2F Hexagon conical wheel nuts
DIN 934 Hexagon nuts
DIN 936 Hexagon nuts
DIN 970 Hexagon nuts
DIN 971-1 Hexagon nuts, style 1
DIN 971-2 Hexagon nuts, style 2
EN 24035 Hexagon thin nuts
EN 28673 Hexagon nuts, style 1
IFI 128 Hexagon coupling nuts
ISO 13754 Hexagon nuts
ISO 4032 Hexagon nuts, style 1
ISO 4033 Hexagon nuts, style 1
ISO 4034 Hexagon nuts
ISO 4035 Hexagon chamfered thin nuts
ISO 4036 Hexagon unchamfered thin nuts
ISO 4775 Heavy hexagon nuts
ISO 7413 Galvanised hexagon nuts tapped oversize
ISO 7414 Heavy hexagon nuts
ISO 7417 Galvanised hexagon nuts tapped oversize
ISO 8673 Hexagon nuts
ISO 8674 Hexagon nuts
ISO 8675 Hexagon thin lock nuts
NF E25-401 Hexagon nuts, style 1
NF E25-402 Hexagon Nuts
NF E25-405-1 Hexagon chamfered thin lock nuts
NF E25-405-2 Hexagon unchamfered thin lock nuts
NF E25-407 Hexagon nuts, style 2
NF E25-451 Hexagon nuts, style 1
NF E25-452 Hexagon nuts, style 2
NF E25-453 Hexagon chamfered thin nuts
UNI 5587 Hexagon Nuts
UNI 5588 Hexagon Nuts
UNI 5589 Hexagon Nuts
UNI 5713 Heavy hexagon nuts

Acme Hex Nut dimensions

Thread Size
(dia.-TPI)		 Lead
(in./rev.)		 Static Load
Rating
(Bronze Nut)
(lbs.)		 Operating
Load Rating
(Bronze Nut)
(lbs.)		 Operating
Load Rating
(Plastic Nut)
(lbs.)		 Minor
Dia.
(in.)		 Drive
Torque
Ratio
(in.-lb./lbs.)		 Forward
Drive
Efficiency		 Screw
Weight
(lbs./ft.)
3/16 - 20 00.050 500 75 38 00.110 00.021 39% 00.070
1/4 - 20 00.050 1,000 300 150 00.175 00.025 32% 00.130
1/4 - 16 00.063 1,000 300 150 00.161 00.027 37% 00.110
3/8 - 20 00.050 2,250 700 350 00.298 00.035 23% 00.310
3/8 - 16 00.063 2,250 700 350 00.285 00.037 27% 00.299
3/8 - 12 00.083 2,250 700 350 00.263 00.039 34% 00.289
3/8 - 10 00.100 2,250 700 350 00.235 00.041 39% 00.270
3/8 - 8 STUB 00.125 1,200 400 200 00.265 00.047 42% 00.280
1/2 - 10 00.100 4,000 1,250 625 00.359 00.051 31% 00.520
1/2 - 8 00.125 4,000 1,250 625 00.332 00.054 37% 00.489
5/8 - 10 00.100 6,250 1,900 950 00.483 00.061 26% 00.849
5/8 - 8 00.125 6,250 1,900 950 00.457 00.064 31% 00.820
5/8 - 7 00.143 6,250 1,900 950 00.438 00.066 34% 00.820
3/4 - 16 00.063 9,000 2,800 1,400 00.658 00.065 15% 1.340
3/4 - 10 00.100 9,000 2,800 1,400 00.608 00.070 23% 1.260
3/4 - 8 00.125 9,000 2,800 1,400 00.581 00.073 27% 1.220
3/4 - 7 00.143 9,000 2,800 1,400 00.562 00.076 30% 1.179
3/4 - 6 00.167 9,000 2,800 1,400 00.537 00.079 34% 1.150
3/4 - 5 00.200 9,000 2,800 1,400 00.502 00.086 38% 1.120
3/4 - 5 STUB 00.200 5,300 1,650 825 00.590 00.083 37% 1.120
7/8 - 6 00.167 12,250 3,800 1,900 00.661 00.088 30% 1.630
7/8 - 5 00.200 12,250 3,800 1,900 00.626 00.093 34% 1.560
1 - 10 00.100 16,000 5,000 2,500 00.856 00.089 18% 2.330
1 - 8 00.125 16,000 5,000 2,500 00.830 00.093 21% 2.280
1 - 7 00.143 16,000 5,000 2,500 00.811 00.095 24% 2.220
1 - 6 00.167 16,000 5,000 2,500 00.786 00.098 27% 2.180
1 - 5 00.200 16,000 5,000 2,500 00.750 00.102 31% 2.089
1 - 4 00.250 16,000 5,000 2,500 00.698 00.109 37% 2.000
1 1/8 - 5 00.200 20,000 6,200 3,100 00.875 00.112 29% 2.730
1 1/4 - 16 00.063 25,000 7,800 3,900 1.155 00.104 10% 3.870
1 1/4 - 5 00.200 25,000 7,800 3,900 00.999 00.121 26% 3.439
1 1/4 - 4 00.250 25,000 7,800 3,900 00.947 00.128 31% 3.300
1 3/8 - 4 00.250 30,000 9,300 4,650 1.071 00.137 29% 4.030
1 1/2 - 10 00.100 36,000 11,300 5,650 1.350 00.128 12% 5.500
1 1/2 - 5 00.200 36,000 11,300 5,650 1.245 00.141 23% 5.100
1 1/2 - 4 00.250 36,000 11,300 5,650 1.196 00.147 27% 4.879
1 1/2 - 2 2/3 STUB 00.375 21,000 6,600 3,300 1.195 00.168 36% 4.980
1 3/4 - 4 00.250 50,000 15,300 7,650 1.445 00.166 30% 6.890
1 3/4 - 3 00.333 50,000 15,300 7,650 1.358 00.177 21% 6.570
2 - 4 00.250 65,000 20,000 10,000 1.694 00.186 27% 9.220
2 - 3 00.333 65,000 20,000 10,000 1.608 00.196 27% 8.769
2 1/4 - 4 00.250 80,000 25,000 12,500 1.944 00.204 20% 11.760
2 1/2 - 4 00.250 100,000 31,000 15,500 2.193 00.224 18% 14.830
2 1/2 - 3 00.333 100,000 31,000 15,500 2.106 00.234 23% 14.230
2 1/2 - 2 00.500 100,000 31,000 15,500 1.930 00.256 31% 13.250
3 - 4 00.250 150,000 46,000 23,000 2.691 00.263 15% 21.800
3 - 3 00.333 150,000 46,000 23,000 2.605 00.273 19% 21.050
3 - 2 00.500 150,000 46,000 23,000 2.456 00.294 27% 19.870
3 1/2 - 2 00.500 200,000 63,000 31,000 2.930 00.332 24% 27.710

Stainless Steel Hex Nuts Material and Grades

  • A4 Hex Nuts
  • 310 Stainless Steel Hex Nuts
  • ASTM A194 Grade 8m Hex Nuts (316)
  • 304 Stainless Steel Hex Nuts
  • 316 Stainless Steel Hex Nuts
  • 304H Stainless Steel Hex Nuts
  • 18-8 Stainless Steel Hex Nuts
  • 317L Stainless Steel Hex Nuts
  • 316L Stainless Steel Hex Nuts
  • 347 Stainless Steel Hex Nuts
  • 17-4 PH Hex Nuts
  • ASTM A194 Grade 8 Hex Nuts (304)
  • 18-8 Stainless Steel Hex Nuts
  • A2-70 Hex Nuts
  • A4-50 Hex nut
  • Heavy Hex Nuts
  • Slotted Hex Nuts
  • Large Hex Nuts
  • Duplex 2205 Hex Nuts
  • ASTM A194 Grade 6 Hex Nuts (410)
  • 304L Stainless Steel Hex Nuts
  • 904L Stainless Steel Hex Nuts
  • A4-80 Hex Nuts
  • 410 Stainless Steel Hex Nuts
  • A2 Hex Nuts
  • 4.8 Hex Nuts
  • ASTM A194 8C Hex Nuts (347)
  • 316 Stainless Hex Nuts
  • 8.8 Hex Nuts
  • 317 Stainless Steel Hex Nuts
  • 321 Stainless Steel Hex Nuts
  • A4-70 Hex Nuts
  • A2-50 Hex Nuts
  • Long Hex Nut
  • Thin Hex Nuts
  • Finished Hex Nuts

Hex Nuts Application

  • Nuclear Energy Sector
  • Oil & Gas Industries
  • Petroleum Industries
  • Defence Industry
  • Chemical Industry
  • Aerospace Industry



Stainless Steel Hex Nuts Testing Tool & Equipment

  • Micrometer
  • Smooth plug gauge
  • Thread gauge
  • Coordinate Measuring Machine
  • Roughness tester
  • Image measuring instrument
  • Routine inspection of calipers
Types of fasteners
Flanges

Fittings

Pipes

Weight Calculator

© 2020 All Rights Reserved by Rolex Metal Distributors

We are On:
