ASTM A1014 UNS N07718 Threaded Rod and Alloy 718 Fasteners manufacturer in India

Inconel 718 Fasteners are a precipitation hardenable nickel-based alloy fasteners which is designed to provide exceptionally high yield, tensile and creep-rupture properties at temperatures up to 1300°F. Alloy 718 Fasteners has excellent weldability when compared to the nickel-base superalloys hardened by aluminum and titanium. It has been used for jet engine and high-speed airframe parts such as buckets, wheels, spacers, and high temperature fasteners and bolts. ASTM B637 UNS N07718 hot-working is carried out using a 2050°F (1121°C) maximum furnace temperature. Hot-cold working in the range 1700/1850°F (927/1010°C) will improve the strength of the forging if the service temperature is below about 1100°F. Inconel 718 Bolts has good resistance to oxidation and corrosion at temperatures in the alloy’s useful strength range in atmospheres encountered in jet engines and gas turbine operations. Alloy 718 Bolts exhibits a characteristic that make it easy to work with for fabrication purposes. Inconel 718 Hex Bolts may be partially or fully threaded along the shaft. It is widely used in construction and home improvement and is available in a huge variety of sizes and styles. Inconel 718 Screws is a nail-shaped or rod-shaped piece with a spiral groove and a slotted or recessed head designed to be inserted into material by rotating and it is used for fastening pieces of solid material together. Inconel 718 Socket Head Cap Screws are commonly used in assemblies that do not provide sufficient clearance for a conventional wrench or socket.

Inconel 718 Fasteners

Inconel 718 Nuts

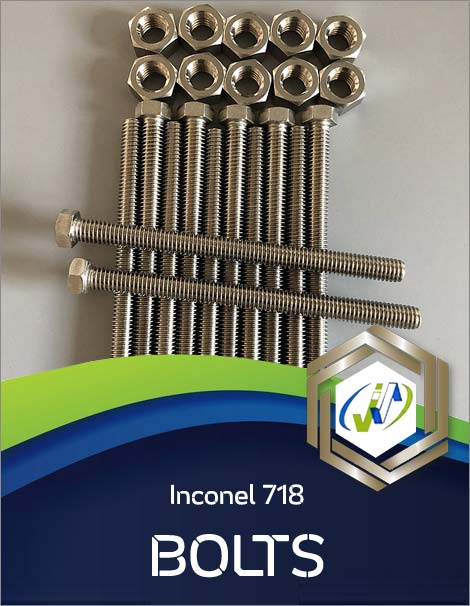

Inconel 718 Bolts

Inconel 718 Hex Bolts

Inconel 718 Stud Bolts

Inconel 718 Screws

PED approved Inconel 718 Hex Bolts manufacturer in India offer DIN 2.4668 Stud Bolt and ASTM A1014 Flat Washer for high-pressure services,

Inconel 718 Bolts Specifications
Inconel 718 Hex Bolts Dimensions
ASTM A1014 UNS N07718 Hex Nuts Dimensions
Inconel Alloy 718 Flat Washer Dimensions
ASTM A1014 Inconel 718 Socket Head Cap Screw Dimensions
Inconel 718 Bolts Type
Common types of Inconel 718 Nuts
Inconel 718 Stud Bolt Type
Frequently Used Inconel 718 Screws Types
Inconel 718 Washers Types
Uses of Inconel 718 Fasteners
Inconel 718 Bolts Testing Tool & Equipment
ASTM A1014 UNS N07718 Nuts Sizes
Inconel Alloy 718 Screws Sizes
ASTM A1014 Inconel 718 Washer Sizes
Inconel UNS N07718 Bolts Sizes
Chemical Composition of Inconel 718 Hex Bolts
Mechanical Properties of ASTM A1014 UNS N07718 Nut Bolt
Inconel Alloy 718 Fasteners Equivalent Grade
Inconel 718 Bolts Price List
Inconel 718 Bolts Weight Calculator

Inconel 718 Bolts Specifications

DIN /ISO & Imperial standard Inconel 718 Fasteners suppliers in Mumbai, extensive size range of Nickel Alloy 718 Heavy Hex Bolts and Allen Bolts, view dimensions and price list ex Mumbai

Inconel 718 Fasteners Sizes	Cold Forming Bolting: M2-M24 Hot Forging Bolting: M24-M100, 1-1/2” Dia, up to 1100mm lg CNC Machining for M100 / 4” Dia, up to 1500mm lg Manufacturer of M2, M3, M3.5, M4, M5, M6, M8, M10, M12, M14, M16, M18, M20, M22, M24, M27, M30, M33, M36, M42, M45, M48 to M160 and Custom Metric Inconel 718 Bolts
ASTM A1014 UNS N07718 Bolts Size Metric	Dia: M10 - M110 Length: 12 - 1200MM
Inconel 718 Hex Bolts Size Inch	Dia: 1/2" - 4.0" Length: 1/2" - 52"
Standard	Manufacturer of Inconel 718 Bolts as per IS, ANSI, ASTM, DIN, ISO, JIS, GB, ASME, BS, UNI, CSN, EU, IFI, PN, and all International Standards International ISO American SAE German DIN ANSI B 18.2.4 2M ANSI B 28.2.4 1M ANSI - American National Standards Institute GB/T5783, GB/T5782, GB5783 American ASME Indian IS Polish PN European EU Spanish CSN British BS Italian UNI
Inconel 718 Bolts Length	3 mm to 200 mm
ASTM A1014 Inconel 718 Bolts & Screws US Threads	METRIC, BSW, BSF, Unified national coarse (UNC), Unified national fine (UNF), Unified national extra fine (UNEF), UNJC and UNJF threads, UNK threads, UNR threads, Constant-pitch threads
Inconel 718 Bolts UTS - Unified Thread Standard	UNC, UNF, NPT, UNS, UNEF, NPTF
Inconel 718 Bolts Head drive	Phillips/Slot, Phillips, Slotted, Six-Lobe, etc
Material Origin	Inconel 718 Bolts are Western European. Eastern origin possible on request.
ISO - International Organization for Standardization	ISO 4014 Hex Bolt ISO 4017 Hex Head Screw ISO 4032 Nut ISO 4162 Flange Bolts ISO 4161 Flange Nut
Ask for Test Certificates from Inconel 718 Bolts manufacturers	Manufacturer Test Certificate (MTC) as per EN 10204 / 3.1, ASTM A1014 UNS N07718 Bolts Tensile testing to ISO 898-1 Hardness testing to ISO 6508-1 Suitability for preloading to EN 14399-2 Tri-Roll Thread Comparators Inconel Alloy 718 Bolts Charpy Impact testing in accordance with ISO 148-1 Suitability test for calibrated preload to EN 14399-10 Nut proof load testing to ISO 898-2 Calibrated gauges and tools
Inconel 718 Nut Bolt Surface Finish & Coating	Zinc Electro Plating (Hexavalent or Trivalent Chrome) ZAC (Zinc Alluminium Flake Coating) Cadmium Nickel plated Plated zinc-nickel Anodizing Geometry Dacroment Black oxide Ptfe Coated Inconel 718 Bolts Bright Zinc Plated (BZP) Hot Dip Galvanised (HDG) Phosphate Teflon Xylon Zinc Phosphate (yellow, blue, white, black) Manganese Phosphate Self-Colour Sherardized All ASTM A1014 UNS N07718 Fasteners surface finishes can be supplied including Galvanised, Zinc, Sherardized, Dacromet, Electroless Nickel, Geomet & PTFE.
Other Inconel 718 Bolts manufacturers	Omni, APL, Kundan, Deepak Fasteners, Unbrako, Sundaram Precision, Infasco, Caparo, EBY Fastener, SPAX® Screws, GKW Etc.
Inconel Alloy 718 Fasteners types	Screws, Socket Screw, Socket Hexagon Head Screw, Anchors, Stud Bolts, Spring Washers, Hex Coupling Nut, Machine Screw, U Bolts, Anchor Bolt, Wing Screw, Hex Nut, Pan Head Screw, Nuts, Hex Head Bolts, Sockets, Marine Anchors, T-Head Bolts, Screw, Square Nut, Structural Bolts, Studs, Hexagon Nut, Bolts, Nut, Socket Head Cap Screw, Washers, Hex Domed Cap Nuts, Foundation Bolts, Wing Screw, Cap Screw, Eye Bolt, Studs, Allen Cap screw, Mushroom Head Square Neck Bolts, Hex Set Screw, J Bolts,
MOQ	5 pieces
Preferred Inconel 718 Nut Bolt Drawing Formats	JPEG, PDF, CAD, STP, IGS
Free Samples	Yes
Delivery time	Regular product is about 7-15 days
Payment Terms	T/T, Western Union, Paypal, L/C or Trade Assurance 30% deposit & balance before shipping
Port of Dispatch	Mumbai or Kalamboli ports in Maharashtra state of India
Why Rolex Metal Distributors?	An Indian manufacturer, established in Year 2008 Wide International network : Western Europe, Eastern Europe, Middle East, Southeast Asia, North America, and South America Best Price in India compared to Inconel 718 Bolts manufacturers in China Highly professional and technical team Always final Inspection before shipment Pre-production Inconel UNS N07718 Fasteners sample before mass production High precision threads
ASTM A1014 Inconel 718 Fasteners applications	Industrial, Wind tower, Railway, Nuclear power, Construction, Electronic, and Automotive industry

Inconel 718 Hex Bolts Dimensions

Manufacturing Inconel 718 Screws and Alloy 718 Bolts in UNF/ UNC threads and custom length, M3 M4 M5 M8 M6 M12 UNS N07718 Hex Nuts and Studs at factory price

Heavy Hex Bolt Diameter	D	F			C		H
	Bolts Body Diameter	Bolts Width Across Flats			Bolts Width Across Corners		Bolts Height
	Max	Basic	Max	Min	Max	Min	Basic	Max	Min
1/2	0.515	7/8	0.875	0.850	1.010	0.969	11/32	0.364	0.302
5/8	0.642	1-1/16	1.062	1.031	1.227	1.175	27/64	0.444	0.378
3/4	0.768	1-1/4	1.250	1.212	1.443	1.383	1/2	0.524	0.455
7/8	0.895	1-7/16	1.438	1.394	1.660	1.589	37/64	0.604	0.531
1	1.022	1-5/8	1.625	1.575	1.876	1.796	43/64	0.700	0.591
1-1/8	1.149	1-13/16	1.812	1.756	2.093	2.002	3/4	0.780	0.658
1-1/4	1.277	2	2.00	1.938	2.309	2.209	27/32	0.876	0.749
1-3/8	1.404	2-3/16	2.188	2.119	2.526	2.416	29/32	0.940	0.810
1-1/2	1.531	2-3/8	2.375	2.300	2.742	2.622	1	1.036	0.902
1-3/4	1.785	2-3/4	2.750	2.662	3.175	3.035	1-5/32	1.196	1.054
2	2.039	3-1/8	3.125	3.025	3.608	3.449	1-11/32	1.388	1.175
2-1/4	2.305	3-1/2	3.500	3.388	4.041	3.862	1-1/2	1.548	1.327
2-1/2	2.559	3-7/8	3.875	3.750	4.474	4.275	1-21/32	1.708	1.479

ASTM A1014 UNS N07718 Hex Nuts Dimensions

Check specification and torque properties of Inconel 718 Socket Head Cap Screws and UNS N07718 Flange Bolts

Inconel Alloy 718 Heavy Hex Nut Dimensions in mm

ISO Inconel 718 Hex Nut NB	Nut Across Corners	Nut MAX Thickness	Nut MIN Thickness	Nut MAX Across Flats	Nut MIN Across Flats
M 8	14.38	6.8	6.44	13	12.73
M 10	17.77	8.4	8.04	16	15.73
M 12	20.03	10.8	10.37	18	17.73
M 14	23.35	12.8	12.1	21	20.67
M 16	26.75	14.8	14.1	24	23.67
M 18	29.56	15.8	15.1	27	26.16
M 20	32.95	18	16.9	30	29.16
M 22	37.29	19.4	18.1	34	33
M 24	39.55	21.5	20.2	36	35
M 27	45.2	23.8	22.5	41	40
M 30	50.85	26.6	24.3	46	45
M 33	55.37	28.7	27.4	50	49
M 36	60.79	31	29.4	55	53.8
M 39	66.44	33.4	31.8	60	58.8
M 42	71.3	34	32.4	65	63.1
M 45	76.95	36	34.4	70	68.1
M 48	82.6	38	39.4	75	73.1
M 52	88.25	42	40.4	80	78.1
M 56	93.56	45	43.4	85	82.8
M 60	99.21	48	46.4	90	87.8
M 64	104.86	51	49.1	95	92.8
M 68	110.51	54	52.1	100	97.8
M 72 x 6	116.16	58	56.1	105	102.8
M 76 x 6	121.81	61	59.1	110	107.8
M 80 x 6	127.46	64	62.1	115	112.8

Inconel Alloy 718 Flat Washer Dimensions

ISO 7089 Inconel 718 Flat Washer dimensions in mm

ASTM A1014 UNS N07718 Bolt Size	USS Washer			SAE Washer
ASTM A1014 UNS N07718 Bolt Size	OD (in.)	ID (in.)	Thickness	OD (in.)	ID (in.)	Thickness
1/8 (#6)	-	-	-	0.375	0.156	.036/.065
5/32 (#8)	-	-	-	0.438	0.188	.036/.065
3/16 (#10)	0.560	0.250	.036/.065	0.500	0.220	.036/.065
7/32 (#12)	-	-	-	0.562	0.250	.051/.080
1/4 (#14)	0.734	0.312	.051/.080	0.625	0.281	.051/.080
5/16	0.875	0.375	.064/.104	0.688	0.344	.051/.080
3/8	1.000	0.438	.064/.104	0.812	0.406	.051/.080
7/16	1.250	0.500	.064/.104	0.922	0.469	.051/.080
1/2	1.375	0.562	.086/.132	1.062	0.531	.074/.121
9/16	1.469	0.625	.086/.132	1.156	0.594	.074/.121
5/8	1.750	0.688	.108/.160	1.312	0.656	.074/.121
3/4	2.000	0.812	.122/.177	1.469	0.812	.108/.160
7/8	2.250	0.938	.136/.192	1.750	0.938	.108/.160
1	2.500	1.062	.136/.192	2.000	1.062	.108/.160
1 1/8	2.750	1.250	.136/.192	2.250	1.250	.108/.160
1 1/4	3.000	1.375	.136/.192	2.500	1.375	.136/.192
1 3/8	3.250	1.500	.153/.213	2.750	1.500	.136/.213
1 1/2	3.500	1.625	.153/.213	3.000	1.625	.153/.213
1 5/8	3.750	1.750	.153/.213	-	-	-
1 3/4	4.000	1.875	.153/.213	-	-	-
1 7/8	4.250	2.000	.153/.213	-	-	-
2	4.500	2.125	.153/.213	-	-	-
2 1/4	4.750	2.375	.193/.248	-	-	-
2 1/2	5.000	2.625	.210/.280	-	-	-
2 3/4	5.250	2.875	.228/.310	-	-	-
3	5.500	3.125	.249/.327	-	-	-

ASTM A1014 Inconel 718 Socket Head Cap Screw Dimensions

American National Standard ANSI/ASME B18.3.1M Inconel 718 Socket Head Cap Screws

ASTM A1014 UNS N07718 Screw Nom. Size Thread Pitch	Body Diameter D		Head Diameter A		Head Height H		Chamfer or Radius S	Hexagon Socket Size J	Spline Socket Sizea M	Key Engagement T	Transition Dia. B
ASTM A1014 UNS N07718 Screw Nom. Size Thread Pitch	Max	Min	Max	Min	Max	Min	Max	Nom.	Nom.	Min	Max
M1.6 × 0.35	1.60	1.46	3.00	2.87	1.60	1.52	0.16	1.5	1.829	0.80	2.0
M2 × 0.4	2.00	1.86	3.80	3.65	2.00	1.91	0.20	1.5	1.829	1.00	2.6
M2.5 × 0.45	2.50	2.36	4.50	4.33	2.50	2.40	0.25	2.0	2.438	1.25	3.1
M3 × 0.5	3.00	2.86	5.50	5.32	3.00	2.89	0.30	2.5	2.819	1.50	3.6
M4 × 0.7	4.00	3.82	7.00	6.80	4.00	3.88	0.40	3.0	3.378	2.00	4.7
M5 × 0.8	5.00	4.82	8.50	8.27	5.00	4.86	0.50	4.0	4.648	2.50	5.7
M6 × 1	6.00	5.82	10.00	9.74	6.00	5.85	0.60	5.0	5.486	3.00	6.8
M8 × 1.25	8.00	7.78	13.00	12.70	8.00	7.83	0.80	6.0	7.391	4.00	9.2
M10 × 1.5	10.00	9.78	16.00	15.67	10.00	9.81	1.00	8.0	…	5.00	11.2
M12 × 1.75	12.00	11.73	18.00	17.63	12.00	11.79	1.20	10.0	…	6.00	14.2
M14 × 2b	14.00	13.73	21.00	20.60	14.00	13.77	1.40	12.0	…	7.00	16.2
M16 × 2	16.00	15.73	24.00	23.58	16.00	15.76	1.60	14.0	…	8.00	18.2
M20 × 2.5	20.00	19.67	30.00	29.53	20.00	19.73	2.00	17.0	…	10.00	22.4
M24 × 3	24.00	23.67	36.00	35.48	24.00	23.70	2.40	19.0	…	12.00	26.4
M30 × 3.5	30.00	29.67	45.00	44.42	30.00	29.67	3.00	22.0	…	15.00	33.4
M36 × 4	36.00	35.61	54.00	53.37	36.00	35.64	3.60	27.0	…	18.00	39.4
M42 × 4.5	42.00	41.61	63.00	62.31	42.00	41.61	4.20	32.0	…	21.00	45.6
M48 × 5	48.00	47.61	72.00	71.27	48.00	47.58	4.80	36.0	…	24.00	52.6

Inconel 718 Bolts Type

ASTM A1014 UNS N07718 Hex Bolts

Inconel 718 Flange Bolts

Inconel Alloy 718 Square Bolts

Inconel UNS N07718 U Bolts

ASTM A1014 Inconel 718 Heavy Hex Bolts

718 Inconel Eye Bolts

ASTM A1014 UNS N07718 Hex Head Bolts

ASTM A1014 Inconel 718 Anchor Bolts

Inconel Alloy 718 Carriage Bolts

Inconel UNS N07718 Allen Cap Bolt

Inconel 718 Lag Bolts

718 Inconel Countersunk Bolts

Common types of Inconel 718 Nuts

Inconel UNS N07718 Lock Nuts

718 Inconel Panel Nuts

ASTM A1014 UNS N07718 Square Nuts

Inconel Alloy 718 Jam Nuts

Inconel Alloy 718 T-Nuts For Wood

ASTM A1014 Inconel 718 Heavy Hex Nuts

Inconel 718 Eye Nuts

ASTM A1014 UNS N07718 Hex Nuts

ASTM A1014 Inconel 718 Wheel Nuts and Caps

Inconel UNS N07718 Wing Nuts

718 Inconel Cage Nuts and Spring Nuts

Nickel Alloy 718 Self Locking Nuts

Inconel 718 Stud Bolt Type

ASTM A1014 Inconel 718 Double Ended Studs

Inconel 718 Stud Bolts

ASTM A1014 UNS N07718 Tie Rod

Inconel Alloy 718 Fully Threaded Studs

Inconel UNS N07718 Threaded Rod

718 Inconel Unc Stud Bolt

Frequently Used Inconel 718 Screws Types

2.4668 Inconel 718 Tek Screws

2.4668 Inconel 718 Concrete Screws

Nickel Alloy 718 Deck Screws

Inconel 718 Socket Head Cap Screw

ASTM A1014 Inconel 718 Thumb Screw

Inconel 718 Eye Screw

ASTM A1014 UNS N07718 Wood Screw

Inconel UNS N07718 Hex Head Lag Screw

Inconel Alloy 718 Coach Screw

718 Inconel 12-Point Flange Head Cap Screws

Inconel Alloy 718 Captive Panel Screws

ASTM A1014 UNS N07718 Wing Screw

ASTM A1014 Inconel 718 Hex Cap Screw

718 Inconel Grub Screw

Nickel Alloy 718 Fully Threaded Screw

Inconel UNS N07718 Allen Cap Screw

2.4668 Inconel 718 Torx Screw

2.4668 Inconel 718 Truss Head Screw

Nickel Alloy 718 Pan Head Screw

Inconel 718 Flat Head Screw

Inconel 718 Washers Types

Inconel 718 Cup Washer

ASTM A1014 Inconel 718 Square Washer

Inconel Alloy 718 Countersunk Washer

Inconel UNS N07718 Belleville Washer

ASTM A1014 UNS N07718 Lock Washer

718 Inconel Shim Washer

ASTM A1014 UNS N07718 Square Plate Washer

Inconel Alloy 718 Square Washer

Inconel UNS N07718 Machine Washers

ASTM A1014 Inconel 718 Penny Washer

Polished 718 Inconel Washer

Nickel Alloy 718 Ring Washers

Uses of Inconel 718 Fasteners

Nuclear Energy Sector
Electrical & Agriculture Industry
Defence Industry
Sea Water Equipment
High Strength Inconel 718 Bolts and Nuts for Automotive industry
Large size Inconel 718 Bolts for Oil & Gas Industries
Offshore & Chemical Industry
Engineering & Aerospace Industry
Inconel 718 Nut Bolt suitable for Off-Shore Oil Drilling
Heavy duty Inconel 718 Fasteners for Heat Exchangers
Inconel 718 Stud Bolt for Construction
High quality Inconel 718 Petrochemical Fasteners
Metric Inconel 718 Hex Bolts for Power Generation

Inconel 718 Bolts Testing Tool & Equipment

Coordinate Measuring Machine
Micrometer for accurate measurement of Inconel 718 Bolts
Image measuring instrument
Routine inspection of calipers
Roughness tester used to test the surface finish of a Inconel 718 Bolts and Nuts
Thread gauge and Smooth plug gauge used to check Inconel 718 Screws and Nuts quickly

ASTM A1014 UNS N07718 Nuts Sizes

ASTM A1014 Inconel 718 Finished Hex Nuts sizes as per ANSI/ASME B18.2.2

Nominal or Basic Major Diameter of Nut Thread		Inconel 718 Nuts Width Across Flats (F)			Width Across Corners (G)		Thickness of ASTM A1014 UNS N07718 Hex Nuts (H)
Nominal or Basic Major Diameter of Nut Thread		Basic	Max	Min	Max	Min	Basic	Max	Min
1/4	0.2500	7/16	.438	.428	.505	.488	7/32	0.226	0.212
5/16	0.3125	1/2	.500	.489	.577	.557	17/64	0.273	0.258
3/8	0.3750	9/16	.562	.551	.650	.628	21/64	0.337	0.320
7/16	0.4375	11/16	.688	.675	.794	.768	3/8	0.385	0.365
1/2	0.5000	3/4	.750	.736	.866	.840	7/16	0.448	0.427
9/16	0.5625	7/8	.875	.861	1.010	.982	31/64	0.496	0.473
5/8	0.6250	15/16	.938	.922	1.083	1.051	35/64	0.559	0.535
3/4	0.7500	1-1/8	1.125	1.088	1.299	1.240	41/64	0.665	0.617
7/8	0.8750	1-5/16	1.312	1.269	1.516	1.447	3/4	0.776	0.724
1	1.0000	1-1/2	1.500	1.450	1.732	1.653	55/64	0.887	0.831
1-1/8	1.1250	1-11/16	1.688	1.631	1.949	1.859	31/32	0.999	0.939
1-1/4	1.2500	1-7/8	1.875	1.812	2.165	2.066	1-1/16	1.094	1.030
1-3/8	1.3750	2-1/16	2.062	1.994	2.382	2.273	1-11/64	1.206	1.138
1-1/2	1.5000	2-1/4	2.250	2.175	2.598	2.480	1-9/32	1.317	1.245
1-5/8	1.6250	2-7/16	2.438	2.356	2.815	2.686	1-25/64	1.429	1.353
1-3/4	1.7500	2-5/8	2.625	2.538	3.031	2.893	1-1/2	1.540	1.460
2	2.000	3	3.000	2.900	3.464	3.306	1-23/32	1.763	1.675
2-1/4	2.2500	3-3/8	3.375	3.263	3.897	3.719	1-15/16	1.986	1.890
2-1/2	2.5000	3-3/4	3.750	3.625	4.330	4.133	2-5/32	2.209	2.105
2-3/4	2.7500	4-1/8	4.125	3.988	4.763	4.456	2-3/8	2.431	2.319
3	3.000	4-1/2	4.500	4.350	5.196	4.959	2-19/32	2.654	2.534

Inconel Alloy 718 Screws Sizes

ASTM A1014 Inconel 718 Screw Size	Body Dia	Hex Key Size	Head Height	Head Dia	Maximum Thread Length	Minimum Thread Length
No. 0	0.06	0.05	0.06	0.096	5/8	3/8
No. 1	0.073	1/16	0.073	0.118	7/8	3/8
No. 2	0.086	5/64	0.086	0.14	7/8	1/2
No. 3	0.099	5/64	0.099	0.161	7/8	1/2
No. 4	0.112	3/32	0.112	0.183	11/8	11/16
No. 5	0.125	3/32	0.125	0.205	1	11/16
No. 6	0.138	7/64	0.138	0.226	11/8	11/16
No. 8	0.164	9/64	0.164	0.27	11/4	3/4
No. 10	0.19	5/32	0.19	0.312	13/8	15/16
No. 12	0.216	5/32	0.216	0.345	11/4	15/16
1/4	0.250	3/16	1/4	3/8	11/2	15/16
5/16	0.3125	1/4	5/16	15/32	1-3/4	1-1/16
3/8	0.375	5/16	3/8	9/16	2	1-3/16
7/16	0.438	3/8	7/16	21/32	2-1/4	13/16
1/2	0.500	3/8	1/2	3/4	2-1/2	1-3/8
9/16	0.5625	7/16	9/16	27/32	2-7/16	1-5/8
5/8	0.625	1/2	5/8	15/16	3	1-5/8
3/4	0.750	5/8	3/4	11/8	3-1/2	1-7/8
7/8	0.875	3/4	7/8	15/16	3-3/4	2-1/16
1	1.000	3/4	1	11/2	4-1/2	2-1/4
1-1/8	1.125	7/8	1-1/8	111/16	4-21/32	2-13/16
1-1/4	1.250	7/8	1-1/4	17/8	5-3/32	3-1/8
1-1/2	1.500	1	1-1/2	21/4	6-5/64	3-3/4
1-3/4	1.750	11/4	1-3/4	25/8	7-1/8	4-3/8
2	2.000	11/2	2	3	8-7/64	5

ASTM A1014 Inconel 718 Washer Sizes

Inconel 718 SAE Flat Washers
Size	Inside Diameter	Outside Diameter	Thickness
#2	3/32"	1/4"	.020"
#4	1/8"	5/16"	1/32"
#6	5/32"	3/8"	3/64"
#8	3/16"	7/16"	3/64"
#10	7/32"	1/2"	3/64"
1/4	9/32"	5/8"	1/16"
5/16	11/32"	11/16"	1/16"
3/8	13/32"	13/16"	1/16"
7/16	15/32"	59/64"	1/16"
1/2	17/32"	1-1/16"	3/32"
9/16	19/32"	1-3/16"	3/32"
5/8	21/32"	1-5/16"	3/32"
3/4	13/16"	1-1/2"	9/64"
7/8	15/16"	1-3/4"	9/64"
1"	1-1/16"	2"	9/64"
1-1/8	1-3/16"	2-1/4"	9/64"
1-1/4	1-5/16"	2-1/2"	5/32"
1-1/2	1-7/16"	3"	3/16"
1-5/8	1-3/4"	3-3/4"	3/16"
1-3/4	1-7/8"	4"	3/16"
2	2-1/8"	4-1/2"	3/16"

Inconel UNS N07718 Bolts Sizes

ASME B18.2.1 718 Inconel Hex Head Bolt size (Inch Series)

Nominal or Basic Product Diameter		E		F			G		H			J	LT (Thread Length)		Y
Nominal or Basic Product Diameter		Body Diameter		Width Across Flats			Width Across Corners		Head Height			Wrenching Height	For Screw Lengths	For Screw Lengths	Transition Thread Length
1/4	0.25	0.25	0.245	7/16	0.438	0.428	0.505	0.488	5/32	0.163	0.150	0.106	0.750	1.000	0.250
5/16	0.3125	0.3125	0.3065	1/2	0.500	0.489	0.577	0.557	13/64	0.211	0.195	0.140	0.875	1.125	0.278
3/8	0.375	0.375	0.369	9/16	0.562	0.551	0.650	0.628	15/64	0.243	0.226	0.160	1.000	1.250	0.312
7/16	0.4375	0.4375	0.4305	5/8	0.625	0.612	0.722	0.698	9/32	0.291	0.272	0.195	1.125	1.375	0.357
1/2	0.5	0.5	0.493	3/4	0.750	0.736	0.866	0.840	5/16	0.323	0.302	0.215	1.250	1.500	0.385
9/16	0.5625	0.5625	0.5545	13/16	0.812	0.798	0.938	0.910	23/64	0.371	0.348	0.250	1.375	1.625	0.417
5/8	0.625	0.625	0.617	15/16	0.938	0.922	1.083	1.051	25/64	0.403	0.378	0.269	1.500	1.750	0.455
3/4	0.75	0.75	0.741	1-1/8	1.125	1.100	1.299	1.254	15/32	0.483	0.455	0.324	1.750	2.000	0.500
7/8	0.875	0.875	0.866	1-5/16	1.312	1.285	1.516	1.465	35/64	0.563	0.531	0.378	2.000	2.250	0.556
1	1	1	0.99	1-1/2	1.500	1.469	1.732	1.675	39/64	0.627	0.591	0.416	2.250	2.500	0.625
1-1/8	1.125	1.125	1.114	1-11/16	1.688	1.631	1.949	1.859	11/16	0.718	0.658	0.461	2.500	2.750	0.714
1-1/4	1.25	1.25	1.239	1-7/8	1.875	1.812	2.165	2.066	25/32	0.813	0.749	0.530	2.750	3.000	0.714
1-1/2	1.5	1.5	1.488	2-1/4	2.250	2.175	2.598	2.480	15/16	0.974	0.902	0.640	3.250	3.500	0.833

Chemical Composition of Inconel 718 Hex Bolts

Ni	Cr	Fe	Mo	Ti	Al	Si	Cu	Mn	Cb+Ta	C	B
MIN	52.0	18.0	19.0	3.0	0.9	0.5	-	-	-	5.0	0.05	0.009
MAX	Balance	-	-	-	-	-	0.35	0.1	0.35	-	-	-

Mechanical Properties of ASTM A1014 UNS N07718 Nut Bolt

Temperature, °F	70
Ultimate Tensile Strength of Inconel 718 Bolts, ksi	202
0.2 % Yield Strength, ksi	170

Inconel Alloy 718 Fasteners Equivalent Grade

Alloy	Common Name	Related Specification
		British	European	ASTM	UNS
Inconel Alloy 718	Inconel 718 ®		2.4668	B637	N07718

Inconel 718 Bolts Price List

Products	FOB Price US $
Inconel 718 stud bolt / thread rod	US $0.10-$1.00/ Piece
Custom cnc M3 m7 m10 m13 m5 Inconel 718 1/4-20 socket head head cap screw bolt	US $0.10-$1.00/ Piece
Inconel 718/ GH4169 hex bolt and nut	US $0.01-$1.00/ Piece
DIN933 DIN931 M8 M6 M10 M12 M16 M20 Inconel 718 N07718 2.4668 Hexagon Bolts and Nuts	US $1.00/ Piece
Inconel 718 hex bolt	US $1.00-$5.00/ Piece
718 Inconel Bolt Outer Hex Bolt	US $0.35/ Piece
Inconel 718 nut bolts and screws	US $1.00/ Piece
Inconel 718 Bolts and Allen Head/ Hex Socket Head Cap Screws Bolts ISO4672 DIN912	US $0.10-$0.50/ Piece
M6 M120 Inconel 718 Hex Bolt DIN933 And DIN934 Nut	US $0.01-$1.00/ Piece
Inconel 718 Bolt and Nuts 2 Bolts, Inconel 718 Fully Threaded Stud Bolt C/w 2 X Heavy Hex Nut	US $0.01-$1.00/ Piece
M10 Inconel 718 Stud Bolt	US $0.10-$1.00/ Piece
Inconel 718 bolt W.Nr2.4668 ASTM UNS N07718 Hex head stud bolts	US $0.10/ Piece
Precision high strength Inconel 718 twelve points flange head bolt	US $0.001-$0.05/ Piece
Inconel 718 stud	US $0.10-$1.00/ Piece
High quality Din 2.4668 Inconel 718 UNS N07718 full thread Hex bolt DIN933 (ISO4017)	US $45.00-$50.00/ Piece
DIN933 DIN931 M8 M6 M10 M12 M16 M20 Inconel 718 N07718 2.4668 Hexagon Bolts and Nuts	US $1.00/ Piece
Inconel 718 hex screw bolt, OEM CNC turning	US $2.00-$6.00/ Piece
DIN 2.4668 Inconel 718 UNS N07718 12 Point Flange Bolt Nut	US $0.50-$2.50/ Piece
High temperature Inconel 718 fasteners full thread Socket hex bolt	US $0.35/ Piece
Inconel 718/ UNS NO7718 / 2.4668 Stud/ Hex Bolt/ Heavy Hex Bolt	US $11.80-$12.30/ Piece
M10 rolling thread Inconel 718 double end stud bolt	US $0.10-$5.00/ Piece
Custom CNC Inconel 718 Aerospace double Threaded Studs with lock nut	US $3.00/ Piece
STUD BOLT UNS N07718 INCONEL 718 WITH NUT	US $0.01-$1.00/ Piece
M28 Inconel 718 Nuts & Bolts DIN912	US $2.00-$5.00/ Piece
Inconel 718 Alloy 718 No7718 DIN 2.4668 Hex Bolt price per kg	US $0.80-$4.70/ Kilogram
Nickel Alloy Inconel 718 Hex Bolt / Screws	US $1.00-$20.00/ Piece
Hot dip galvanized Inconel 718 head indent hex bolt	US $0.01-$0.02/ Piece
CNC lathe Inconel 718 double ended studs	US $0.50-$3.00/ Piece
High quality Inconel 718 stud bolt/ threaded rod	US $27.00/ Kilogram
M10 Inconel 718 Stud Bolt	US $0.10-$1.00/ Piece
Inconel 718 2.4668 fastener bolt nut and washer	US $0.50-$1.00/ Piece
DIN912 M3 M4 M5 M20 Inconel 718 N07718 2.4668 Hexagon Cap Head Bolts and Nuts Socket Screw	US $1.00/ Piece

Call us or send us an email to marketing@rolexmetals.com for more details. Always compare our price with other Inconel 718 Bolts manufacturers in India or China

57-A Khatargalli, Thakurdwar,Mumbai – 400002 India
+91 98202 92499,
Mon - Saturday: 9.00am to 7.00pm
marketing@rolexmetals.com
marketing@rolexmetals.com
